EJW5015A - 2A 40V Synchronous Step-Down Converter

Datasheet Summary

Description

The EJW5015A is a current mode monolithic buck switching regulator.

Operating with an input range of 3.6V~40V, The EJW5015A delivers 2A of continuous output current with two integrated N-Channel MOSFETs.

Features

3.6 V to 40 V operating input range.
2A output current.
Up to 94% efficiency.
High efficiency (>78%) at light load.
Internal Soft-Start.
Fixed 440kHz Switching frequency.
Input under voltage lockout.
Available in thermally enhanced.
Start-up current run-away protection.
Short circuit protection.
Thermal protection ESOP8 package.

E-CMOS

📥 Download Datasheet

Datasheet Details

Part number	EJW5015A
Manufacturer	E-CMOS
File Size	505.89 KB
Description	2A 40V Synchronous Step-Down Converter
Datasheet	EJW5015A Datasheet

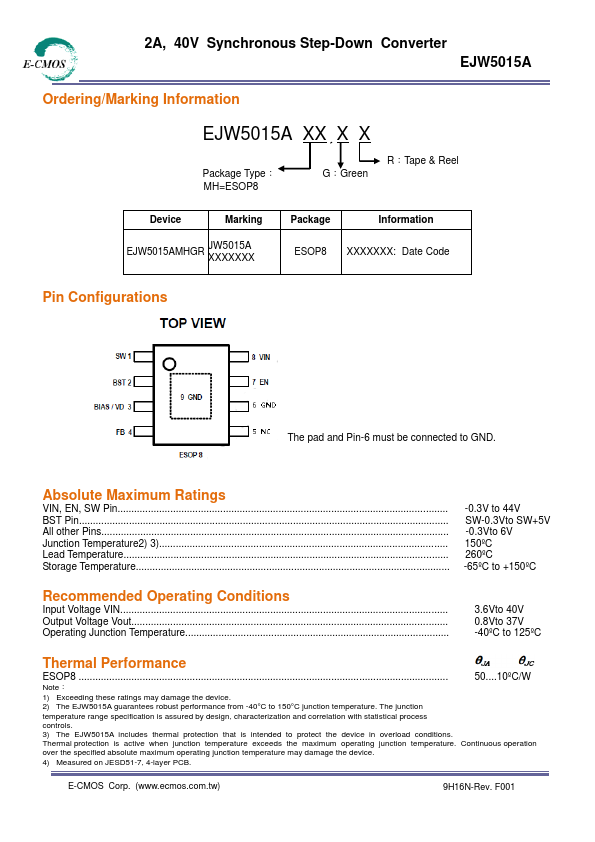

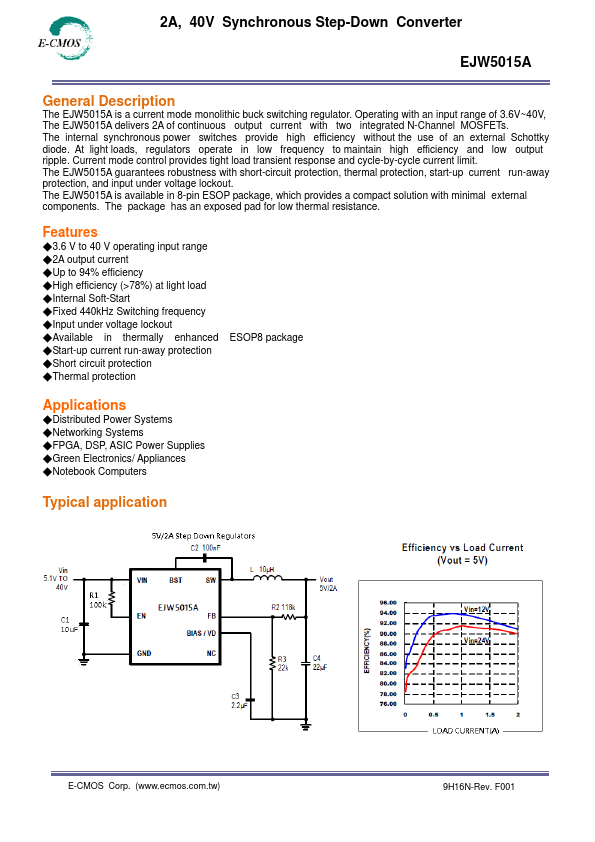

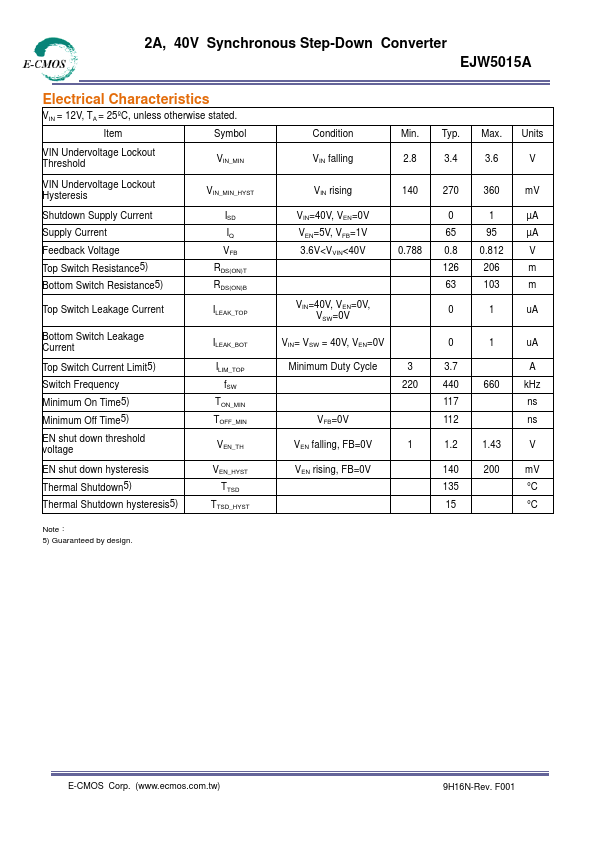

Additional preview pages of the EJW5015A datasheet.

📁 Similar Datasheet

Other Datasheets by E-CMOS

EJW5068A - 1.5A 20V Synchronous Buck LED Driver
EJW5116 - 3A 40V Asynchronous Step-Down Converter
EJW3655 - High Efficiency 3A Multi-Cells Li-Ion Battery Charger

Full PDF Text Transcription

Click to expand full text

2A, 40V Synchronous Step-Down Converter EJW5015A General Description The EJW5015A is a current mode monolithic buck switching regulator. Operating with an input range of 3.6V~40V, The EJW5015A delivers 2A of continuous output current with two integrated N-Channel MOSFETs. The internal synchronous power switches provide high efficiency without the use of an external Schottky diode. At light loads, regulators operate in low frequency to maintain high efficiency and low output ripple. Current mode control provides tight load transient response and cycle-by-cycle current limit. The EJW5015A guarantees robustness with short-circuit protection, thermal protection, start-up current run-away protection, and input under voltage lockout.
