CCD207-40 Datasheet | E2V

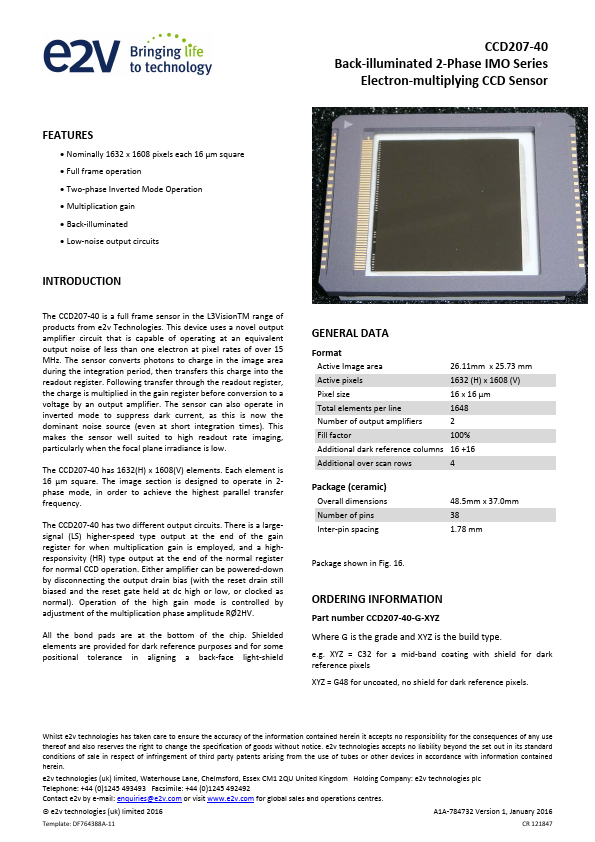

CCD207-40 Back-illuminated 2-Phase IMO Series Electron-multiplying CCD Sensor Features - Nominally 1632 x 1608 pixels each 16 µm square - Full frame operation - Two-phase Inverted Mode Operation - Multiplication gain - Back-illuminated - Low-noise output circuits INTRODUCTION The CCD207-40 is a full frame sensor in the L3VisionTM range of products from e2v Technologies. This device uses a novel output amplifier circuit that is capable of operating at an equivalent output noise of less than one electron at pixel rates of over 15 MHz. The sensor converts photons to charge in the image area during the integration period, then transfers this charge into the readout register. Following...
