1SS294 Datasheet | EIC Semiconductor

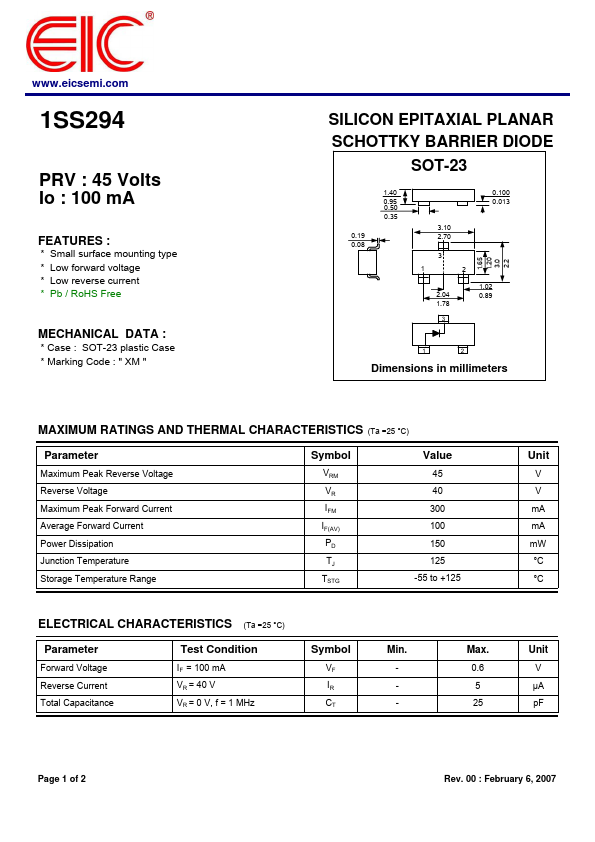

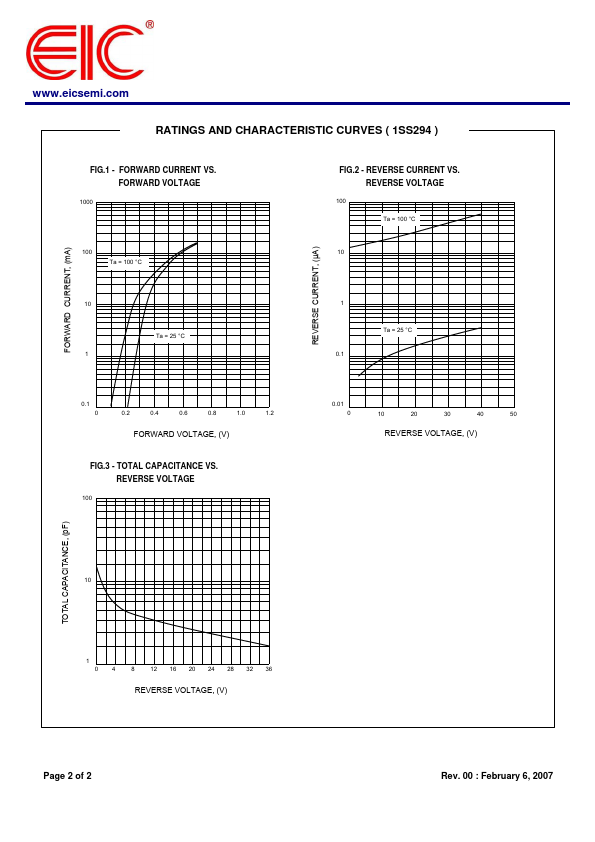

FEATURES : - Small surface mounting type - Low forward voltage - Low reverse current - Pb / Ro HS Free MECHANICAL DATA : - Case : SOT-23 plastic Case - Marking Code : " XM " SILICON EPITAXIAL PLANAR SCHOTTKY BARRIER DIODE SOT-23 1.40 0.95 0.50 0.35 0.19 0.08 0.100 0.013 3.10 2.70 1.65 1.20 3.0 2.2 Dimensions in millimeters MAXIMUM RATINGS AND THERMAL CHARACTERISTICS (Ta =25 °C) Parameter Maximum Peak Reverse Voltage Reverse Voltage Maximum Peak Forward Current Average Forward Current Power Dissipation Junction Temperature Storage Temperature Range Symbol VRM VR IFM IF(AV) PD TJ TSTG Value 45 40 300 100 150 125 -55 to +125 ELECTRICAL CHARACTERISTICS (Ta =25 °C) Parameter Forward Voltage Reverse Current Total Capacitance Test Condition IF = 100 m A VR = 40 V VR = 0 V, f = 1...
