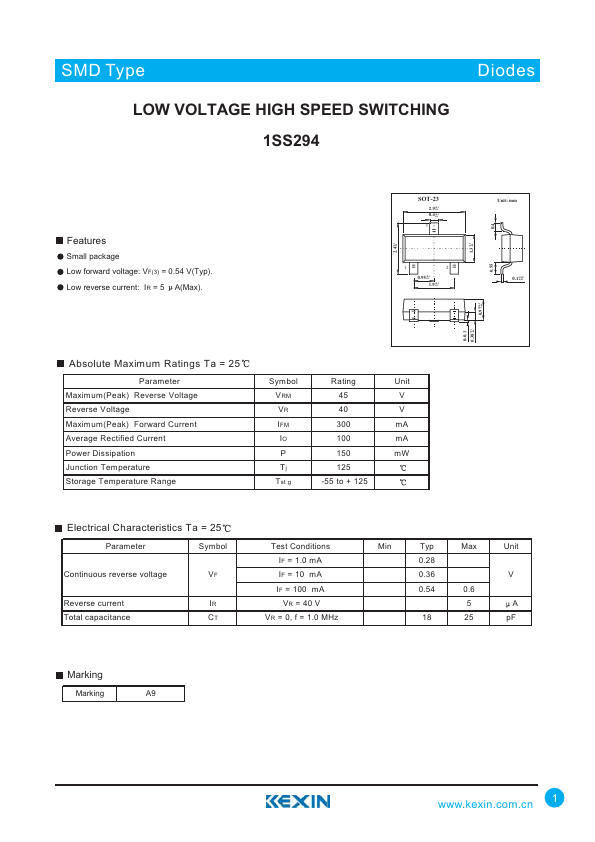

1SS294
1SS294 is LOW VOLTAGE HIGH SPEED SWITCHING DIODE manufactured by Kexin Semiconductor.
Features
Small package Low forward voltage: VF(3) = 0.54 V(Typ). Low reverse current: IR = 5 A(Max).
+0.1 2.4 -0.1
SOT-23
2.9+0.1 -0.1
0.4+0.1 -0.1
0.95+0.1 -0.1 1.9+0.1 -0.1
Absolute Maximum Ratings Ta = 25
Parameter Maximum(Peak) Reverse Voltage Reverse Voltage Maximum(Peak) Forward Current Average Rectified Current Power Dissipation Junction Temperature Storage Temperature Range
Symbol VRM VR IFM IO P Tj Tst g
Rating 45 40 300 100 150 125
-55 to + 125
Unit V V m A m A m W
0-0.1 +0.1 0.38
-0.1
+0.1 1.3 -0.1
+0.1 0.97 -0.1
Unit: mm
0.1+0.05 -0.01
1.Base 2.Emitter 3.collector
Electrical Characteristics Ta = 25
Parameter
Symbol
Continuous reverse voltage
Reverse current
Total capacitance
Test Conditions IF = 1.0 m A IF = 10 m A IF = 100 m A VR = 40 V
VR = 0, f = 1.0 MHz
Min
Typ
Max
Unit...
