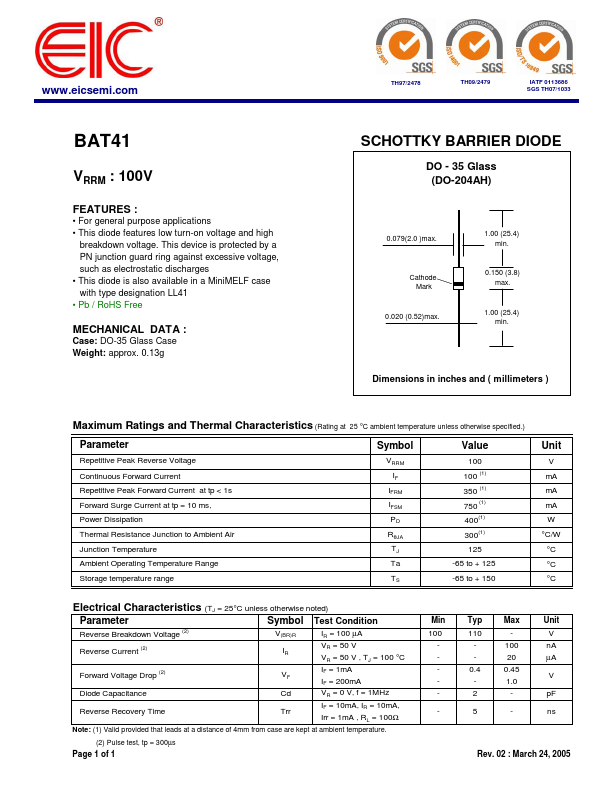

BAT41 Datasheet PDF

FEATURES

:
● For general purpose applications
● This diode features low turn-on voltage and high breakdown voltage. This device is protected by a PN junction guard ring against excessive voltage, such as electrostatic discharges
● This diode is also available in a MiniMELF case with type designation LL41
● Pb / RoHS Free

MECHANICAL DATA

: Case: DO-35 Glass Case Weight: approx. 0.13g SCHOTTKY BARRIER DIODE DO - 35 Glass (DO-204AH) 0.079(2.0 )max. Cathode Mark 0.020 (0.52)max. 1.00 (25.4) min. 0.150 (3.8) max. 1.00 (25.4) min. Dimensions in inches and ( millimeters )

MAXIMUM RATINGS

and Thermal Characteristics (Rating at 25 °C ambient temperature unless otherwise specified.) Parameter Repetitive Peak Reverse Voltage Continuous Forward Current Repetitive Peak Forward Current at tp < 1s Forward Surge Current at tp = 10 ms, Power Dissipation Thermal Resistance Junction to Ambient Air Junction Temperature Ambient Operating Temperature Range Storage temperature range Symbol VRRM IF IFRM IFSM...
