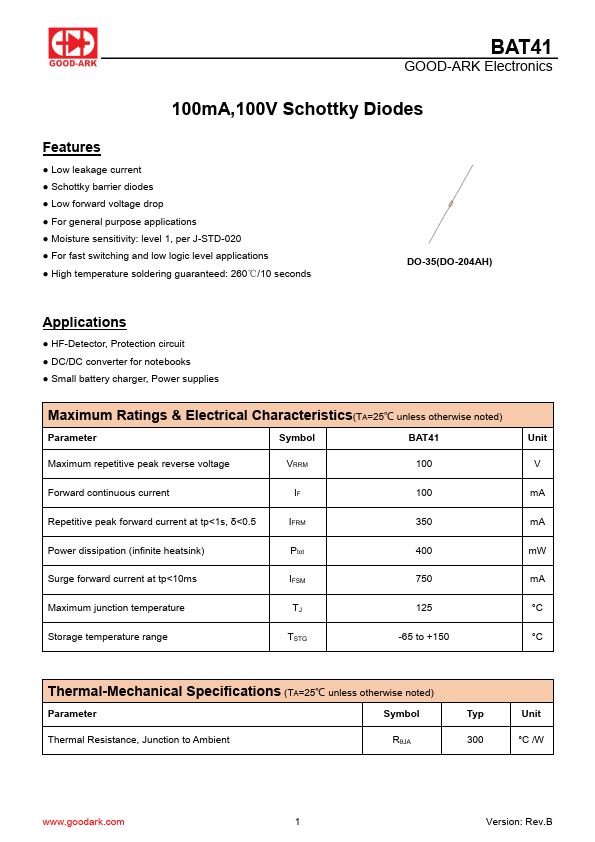

Good-Ark Semiconductor BAT41
100mA 100V Schottky Diodes
| Part No. | BAT41 |
|---|---|
| Datasheet | BAT41 Download |
| Manufacturer |  Good-Ark Semiconductor |
| Description | 100mA 100V Schottky Diodes |
| Buy | Stock & Price |
FEATURES
● Low leakage current● Schottky barrier diodes
● Low forward voltage drop
● For general purpose applications
● Moisture sensitivity: level 1, per J-STD-020
● For fast switching and low logic level applications
● High temperature soldering guaranteed: 260℃/10 seconds DO-35(DO-204AH)
APPLICATIONS
● HF-Detector, Protection circuit● DC/DC converter for notebooks
● Small battery charger, Power supplies
MAXIMUM RATINGS
&ELECTRICAL CHARACTERISTICS
(TA=25℃ unless otherwise noted) Parameter Symbol BAT41 Unit Maximum repetitive peak reverse voltage VRRM 100 V Forward continuous current IF 100 mA Repetitive peak forward current at tp<1s, δ<0.5 IFRM 350 mA Power dissipation (infinite heatsink) Ptot 400 mW Surge forward current at tp<10ms IFSM 750 mA Maximum junction temperature TJ 125 °C Storage temperature range TSTG -65 to +150 °C Thermal-Mechanical Specifications (TA=25℃ unless otherwise noted) Parameter Symbol Typ Unit Thermal Resistance, Junction to Ambient RθJA 300 °C /W 1 Version...
