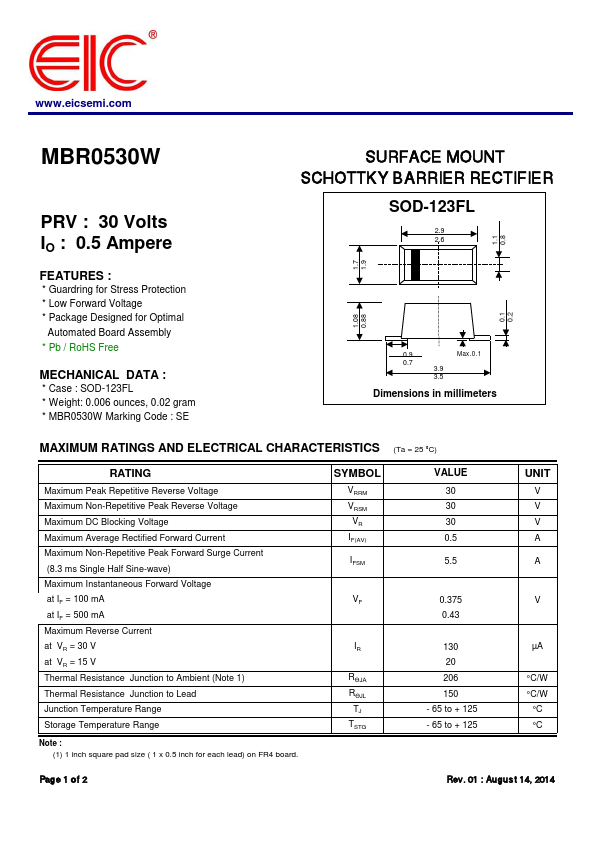

EIC Semiconductor MBR0530W
SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
| Part No. | MBR0530W |
|---|---|
| Datasheet | MBR0530W Download |
| Manufacturer |  EIC Semiconductor |
| Description | SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER |
| Buy | Stock & Price |
FEATURES
: * Guardring for Stress Protection * Low Forward Voltage * Package Designed for Optimal Automated Board Assembly * Pb / RoHS FreeMECHANICAL DATA
: * Case : SOD-123FL * Weight: 0.006 ounces, 0.02 gram * MBR0530W Marking Code : SE SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER SOD-123FL 2.9 2.6 0. 8 1. 1 1. 9 1. 7 0. 2 0. 1 0.88 1.08 0.9 Max.0.1 0.7 3.9 3.5 Dimensions in millimetersMAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(Ta = 25 °C) RATING Maximum Peak Repetitive Reverse Voltage Maximum Non-Repetitive Peak Reverse Voltage Maximum DC Blocking Voltage Maximum Average Rectified Forward Current Maximum Non-Repetitive Peak Forward Surge Current (8.3 ms Single Half Sine-wave) Maximum Instantaneous Forward Voltage at IF = 100 mA at IF = 500 mA Maximum Reverse Current at VR = 30 V at VR = 15 V Thermal Resistance Junction to Ambient (Note 1) Thermal Resistance Junction to Lead Junction Temperature Range Storage Temperature Range Note : (1) 1 inch square pad size ( 1 x 0.5 inch for each lead) on FR4 board.
