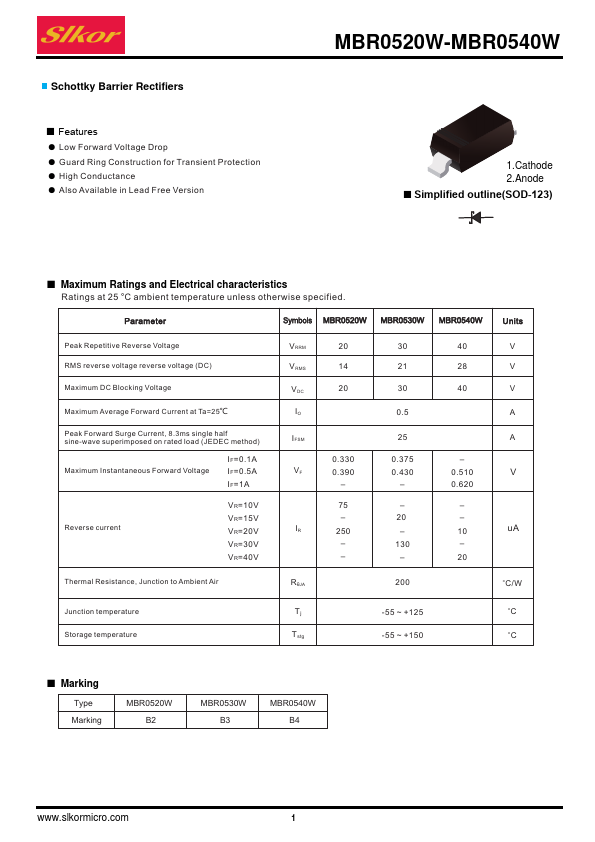

Slkor MBR0530W
Schottky Barrier Rectifiers
| Part No. | MBR0530W |
|---|---|
| Datasheet | MBR0530W Download |
| Manufacturer |  Slkor |
| Description | Schottky Barrier Rectifiers |
| Buy | Stock & Price |
FEATURES
● Low Forward Voltage Drop● Guard Ring Construction for Transient Protection
● High Conductance
● Also Available in Lead Free Version MBR0520W-MBR0540W 1.Cathode 2.Anode

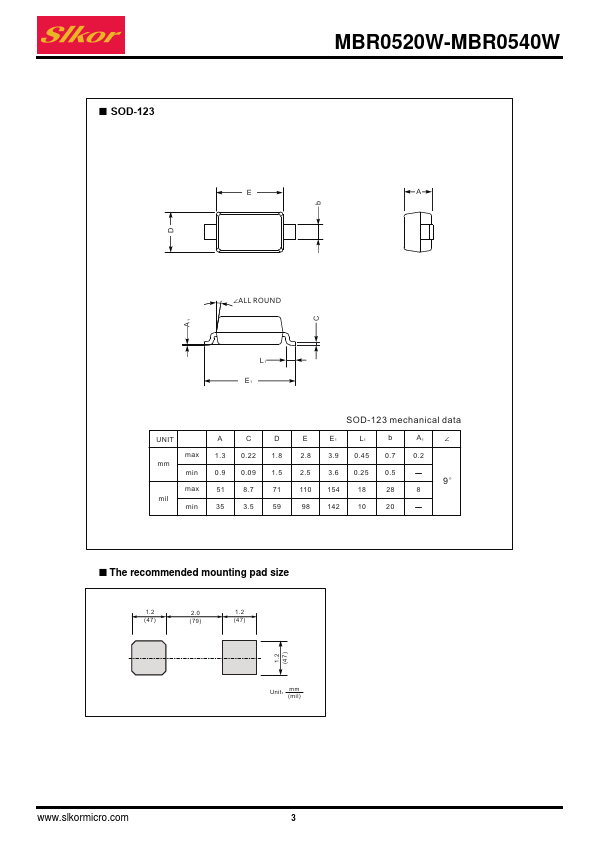

● Simplified outline(SOD-123)
●

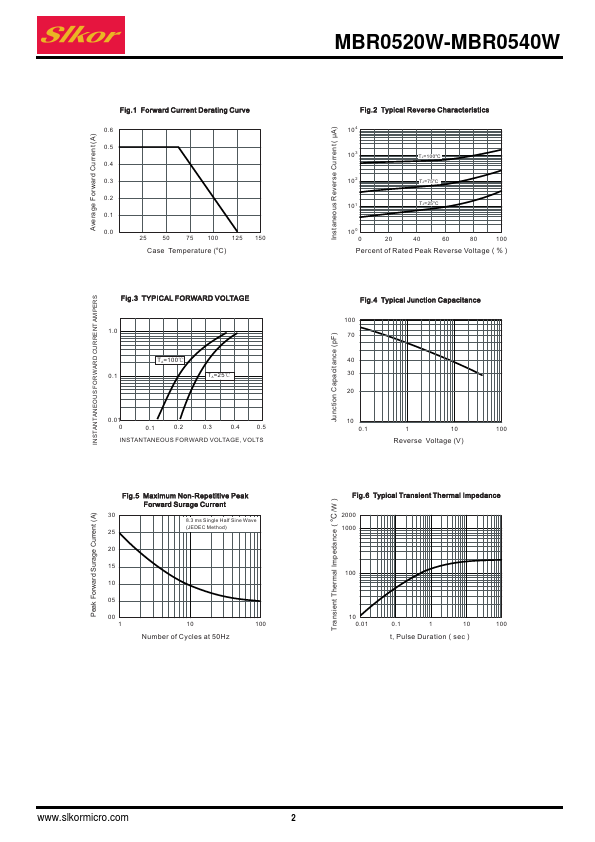

MAXIMUM RATINGS
and Electrical characteristics Ratings at 25 °C ambient temperature unless otherwise specified. Parameter Symbols MBR0520W MBR0530W MBR0540W Units Peak Repetitive Reverse Voltage RMS reverse voltage reverse voltage (DC) Maximum DC Blocking Voltage Maximum Average Forward Current at Ta=25℃ Peak Forward Surge Current, 8.3ms single half sine-wave superimposed on rated load (JEDEC method) Maximum Instantaneous Forward Voltage IF=0.1A IF=0.5A IF=1A Reverse current VR=10V VR=15V VR=20V VR=30V VR=40V VRRM VRMS VDC IO IFSM VF IR 20 14 20 0.330 0.390 – 75 – 250 – – 30 21 30 0.5 25 0.375 0.430 – – 20 – 130 – 40 V 28 V 40 V A A – 0.510 V 0.620 – – 10 uA – 20 Thermal Resistance, Junction to Ambient Air RθJA 200 °C/W Junction temperature Storage temperature Tj -55 ~ +125 °C...
