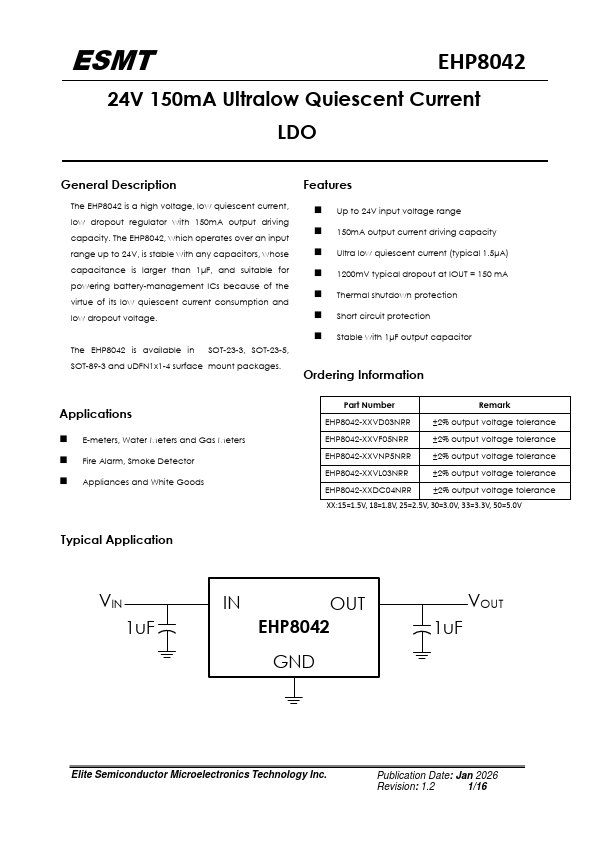

EHP8042
Description
Features
The EHP8042 is a high voltage, low quiescent current, low dropout regulator with 150m A output driving capacity. The EHP8042, which operates over an input range up to 24V, is stable with any capacitors, whose capacitance is larger than 1μF, and suitable for powering battery-management ICs because of the virtue of its low quiescent current consumption and low dropout voltage.

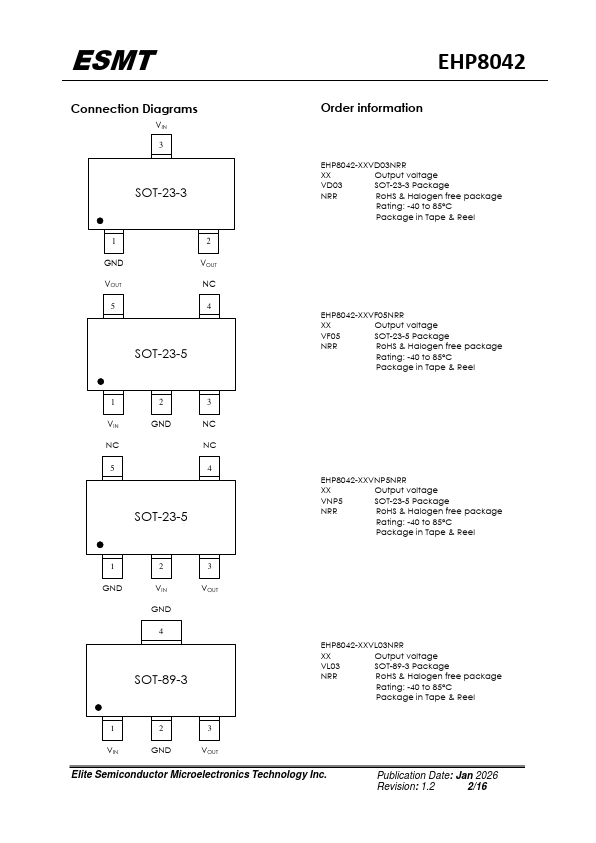

The EHP8042 is available in SOT-23-3, SOT-23-5, SOT-89-3 and u DFN1x1-4 surface mount packages.
Up to 24V input voltage range 150m A output current driving capacity Ultra low quiescent current (typical 1.5μA) 1200m V typical dropout at IOUT = 150 m A Thermal shutdown protection Short circuit protection Stable with 1μF output capacitor

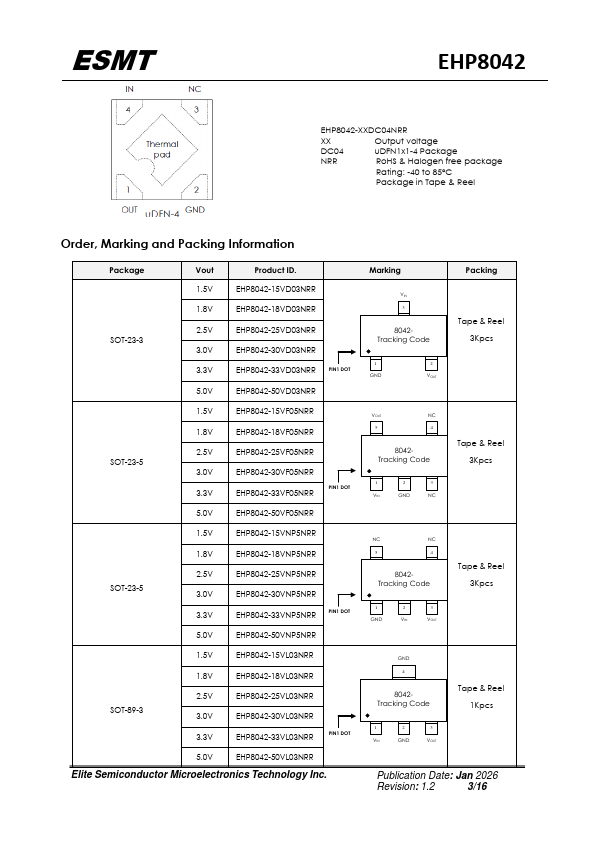

Ordering Information
Applications
E-meters, Water Meters and Gas Meters Fire Alarm, Smoke Detector Appliances and White Goods
Part Number
Remark
EHP8042-XXVD03NRR
±2% output voltage tolerance
EHP8042-XXVF05NRR
±2% output voltage...
