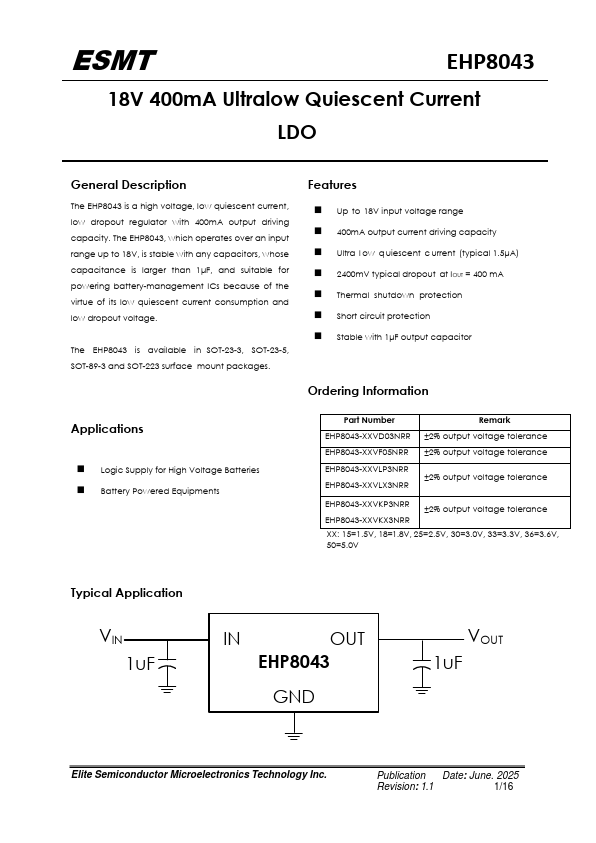

EHP8043
Description
The EHP8043 is a high voltage, low quiescent current, low dropout regulator with 400m A output driving capacity. The EHP8043, which operates over an input range up to 18V, is stable with any capacitors, whose capacitance is larger than 1μF, and suitable for powering battery-management ICs because of the virtue of its low quiescent current consumption and low dropout voltage.
The EHP8043 is available in SOT-23-3, SOT-23-5, SOT-89-3 and SOT-223 surface mount packages.
Features
Up to 18V input voltage range 400m A output current driving capacity Ultra l ow q uiescent c urrent (typical 1.5μA) 2400m V typical dropout at IOUT = 400 m A Thermal shutdown protection Short circuit protection Stable with 1μF output capacitor
Ordering Information
Applications
Logic Supply for High Voltage Batteries Battery Powered Equipments
Part Number EHP8043-XXVD03NRR EHP8043-XXVF05NRR EHP8043-XXVLP3NRR EHP8043-XXVLX3NRR
Remark ±2% output voltage tolerance ±2% output voltage...
