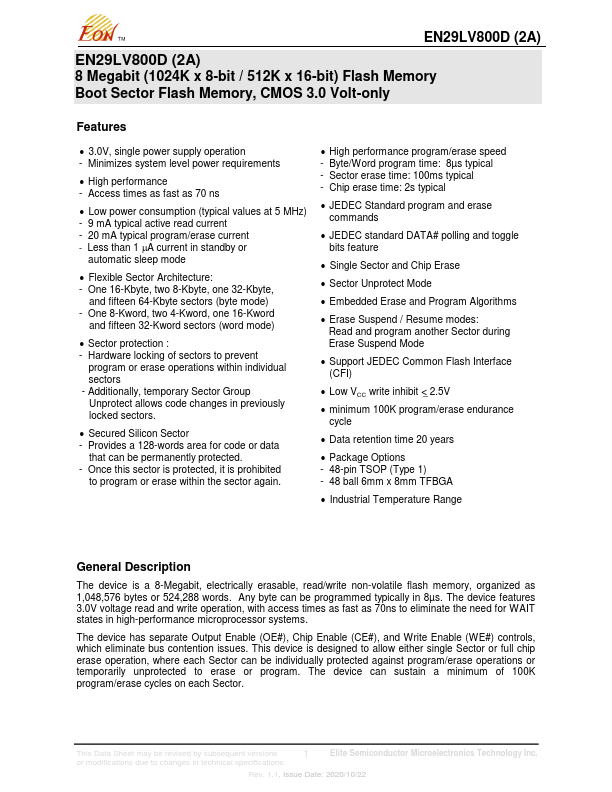

EN29LV800DT Overview
The device is a 8-Megabit, electrically erasable, read/write non-volatile flash memory, organized as 1,048,576 bytes or 524,288 words. Any byte can be programmed typically in 8µs.
EN29LV800DT Key Features
- 3.0V, single power supply operation
- Minimizes system level power requirements
- High performance
- Access times as fast as 70 ns
- Low power consumption (typical values at 5 MHz)
- 9 mA typical active read current
- 20 mA typical program/erase current
- Less than 1 A current in standby or
- Flexible Sector Architecture
- One 16-Kbyte, two 8-Kbyte, one 32-Kbyte
