M12L64164A-7TIAG2C
M12L64164A-7TIAG2C is 1M x 16 Bit x 4 Banks Synchronous DRAM manufactured by Elite Semiconductor Microelectronics Technology.
- Part of the M12L64164A-5TIAG2C comparator family.
- Part of the M12L64164A-5TIAG2C comparator family.

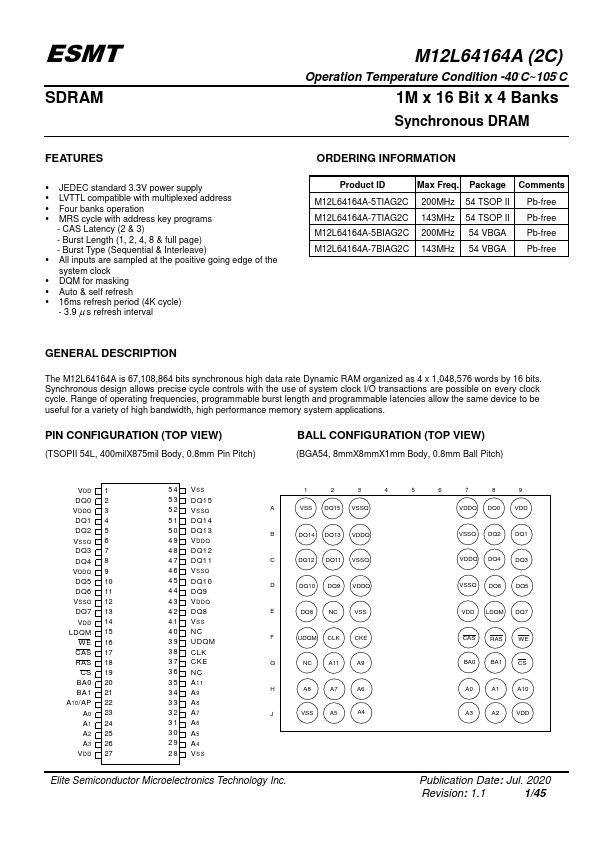

ESMT
SDRAM
M12L64164A (2C)
Operation Temperature Condition -40°C~105°C
1M x 16 Bit x 4 Banks
Synchronous DRAM
Features
- JEDEC standard 3.3V power supply
- LVTTL patible with multiplexed address
- Four banks operation
- MRS cycle with address key programs
- CAS Latency (2 & 3)
- Burst Length (1, 2, 4, 8 & full page)
- Burst Type (Sequential & Interleave)
- All inputs are sampled at the positive going edge of the system clock
- DQM for masking
- Auto & self refresh
- 16ms refresh period (4K cycle)
- 3.9 s refresh interval
ORDERING INFORMATION
Product ID
Max Freq. Package ments
M12L64164A-5TIAG2C 200MHz 54 TSOP II Pb-free
M12L64164A-7TIAG2C 143MHz 54 TSOP II Pb-free
M12L64164A-...
