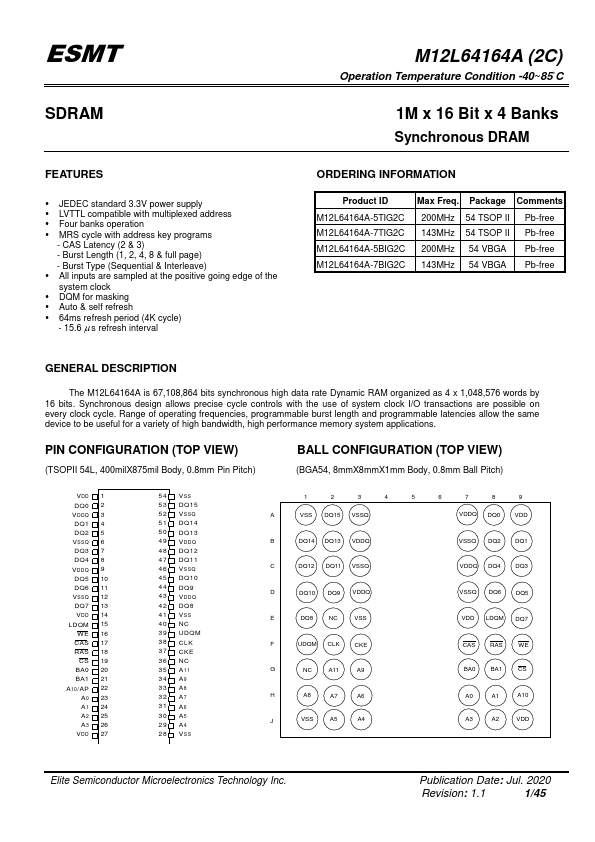

M12L64164A-7TIG2C
M12L64164A-7TIG2C is 1M x 16 Bit x 4 Banks Synchronous DRAM manufactured by Elite Semiconductor Microelectronics Technology.
- Part of the M12L64164A-5TIG2C comparator family.
- Part of the M12L64164A-5TIG2C comparator family.
ESMT
SDRAM
Features
- JEDEC standard 3.3V power supply
- LVTTL patible with multiplexed address
- Four banks operation
- MRS cycle with address key programs
- CAS Latency (2 & 3)
- Burst Length (1, 2, 4, 8 & full page)
- Burst Type (Sequential & Interleave)
- All inputs are sampled at the positive going edge of the system clock
- DQM for masking
- Auto & self refresh
- 64ms refresh period (4K cycle)
- 15.6 s refresh interval
M12L64164A (2C)
Operation Temperature Condition -40~85°C
1M x 16 Bit x 4 Banks
Synchronous DRAM
ORDERING INFORMATION
Product ID M12L64164A-5TIG2C M12L64164A-7TIG2C M12L64164A-5BIG2C M12L64164A-7BIG2C
Max Freq. Package ments 200MHz 54 TSOP II Pb-free 143MHz...
