M14D2561616A-2.5BG2C Datasheet 4m X 16 Bit X 4 Banks Ddr Ii Sdram

Manufacturer: ESMT (Elite Semiconductor Microelectronics Technology)

Overview: ESMT DDR II SDRAM M14D2561616A (2C) 4M x 16 Bit x 4 Banks DDR II.

This datasheet includes multiple variants, all published together in a single manufacturer document.

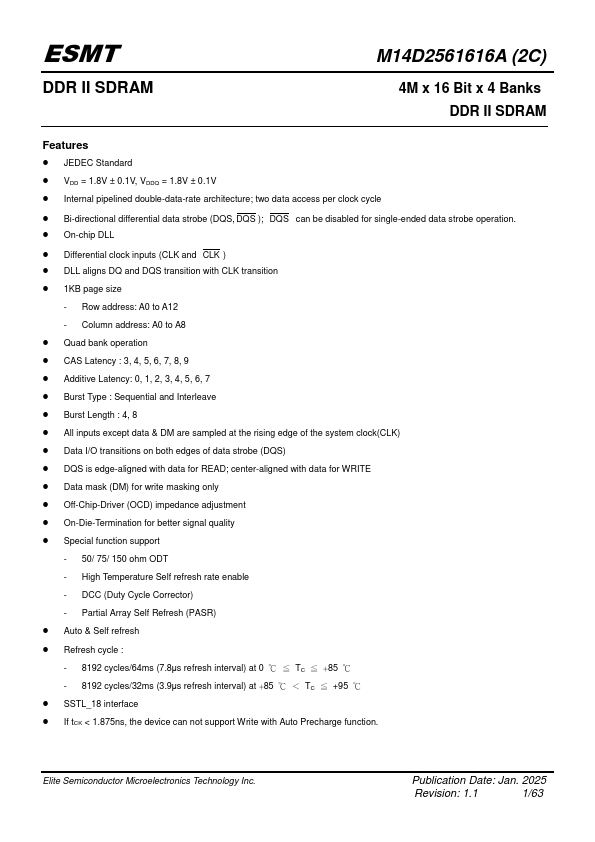

Key Features

  • JEDEC Standard.
  • VDD = 1.8V ± 0.1V, VDDQ = 1.8V ± 0.1V.
  • Internal pipelined double-data-rate architecture; two data access per clock cycle.
  • Bi-directional differential data strobe (DQS, DQS ); DQS can be disabled for single-ended data strobe operation.
  • On-chip DLL.
  • Differential clock inputs (CLK and CLK ).
  • DLL aligns DQ and DQS transition with CLK transition.
  • 1KB page size - Row address: A0 to A12 - Column address: A0 to A8.
  • Quad bank operation.
