M14D5121632A-1.5BG2S - 8M x 16 Bit x 4 Banks DDR II SDRAM

General Description

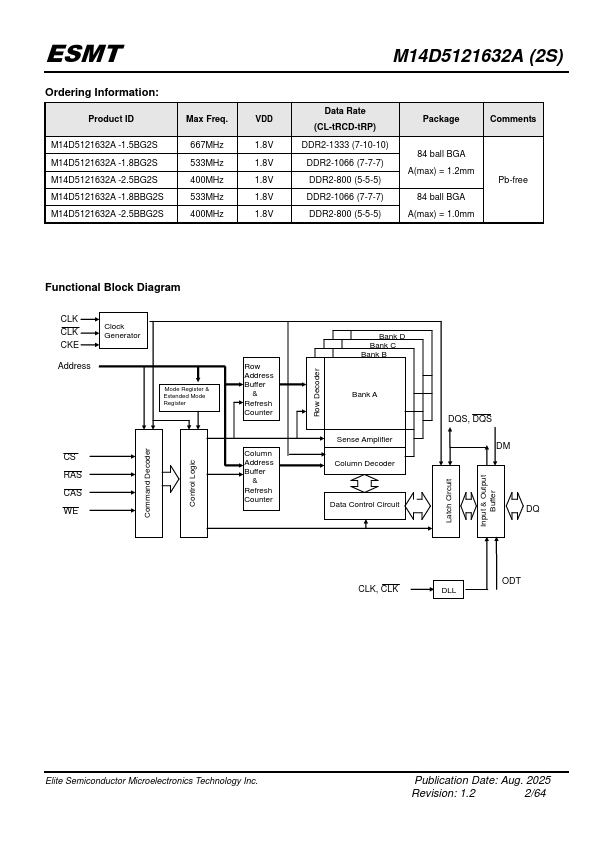

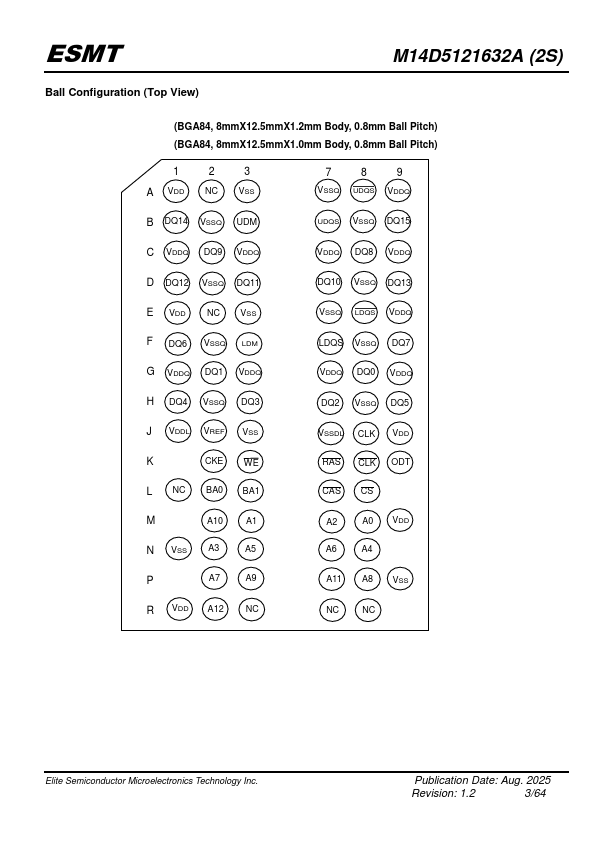

Pin Name A0~A12, BA0,BA1 DQ0~DQ15 RAS CAS WE VSS VDD DQS, DQS (LDQS, LDQS UDQS, UDQS ) ODT NC Function Pin Name Function Address inputs - Row address A0~A12 - Column address A0~A9 A10/AP : Auto Precharge BA0, BA1 : Bank selects (4 Banks) DM (LDM, UDM) DM is an input mask signal for write data

Key Features

  • JEDEC Standard.
  • VDD = 1.8V ± 0.1V, VDDQ = 1.8V ± 0.1V.
  • Internal pipelined double-data-rate architecture; two data access per clock cycle.
  • Bi-directional differential data strobe (DQS, DQS ); DQS can be disabled for single-ended data strobe operation.
  • On-chip DLL.
  • Differential clock inputs (CLK and CLK ).
  • DLL aligns DQ and DQS transition with CLK transition.
  • Quad bank operation.
  • CAS Latency : 3, 4, 5, 6, 7, 8, 9.
  • Additive Latency: 0, 1, 2, 3, 4,.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
M140NWR1-R0 TFT LCD IVO
M140NWR2-R0 TFT LCD IVO
M140NWR2-R1 TFT LCD IVO
M140NWR2-R2 TFT LCD IVO
M141-X76C TFT Color LCD IMES

Other Datasheets by ESMT (Elite Semiconductor Microelectronics Technology)

Part Number Description
M14D5121632A-1.5BG2A DDR-II SDRAM
M14D5121632A-1.5BG2M 8M x 16 Bit x 4 Banks DDR II SDRAM
M14D5121632A-1.8BBG2A DDR-II SDRAM
M14D5121632A-1.8BBG2M 8M x 16 Bit x 4 Banks DDR II SDRAM
M14D5121632A-1.8BBG2S 8M x 16 Bit x 4 Banks DDR II SDRAM

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

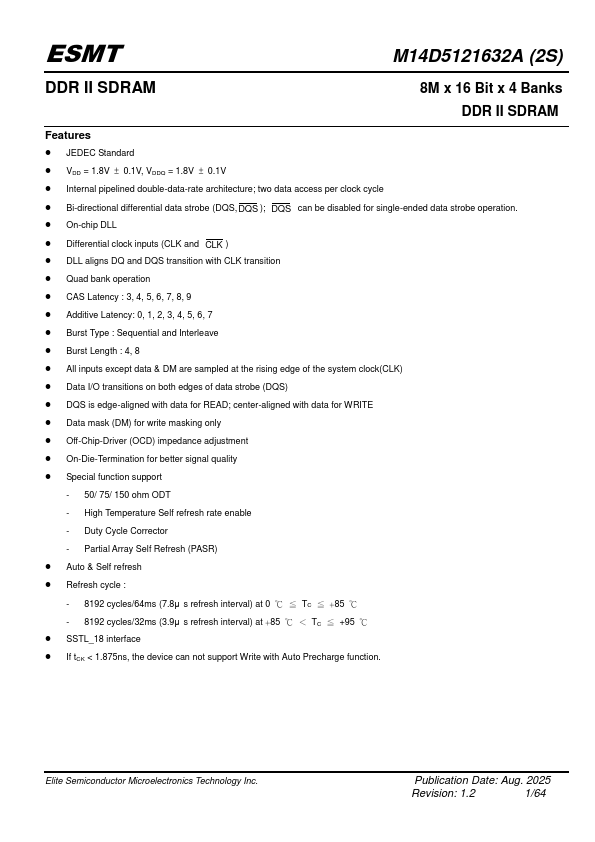

ESMT M14D5121632A (2S) DDR II SDRAM 8M x 16 Bit x 4 Banks DDR II SDRAM Features  JEDEC Standard  VDD = 1.8V ± 0.1V, VDDQ = 1.8V ± 0.1V  Internal pipelined double-data-rate architecture; two data access per clock cycle  Bi-directional differential data strobe (DQS, DQS ); DQS can be disabled for single-ended data strobe operation.
