Datasheet Details
| Part number | M15T2G16128A-BDBG2L |
|---|---|
| Manufacturer | ESMT (Elite Semiconductor Microelectronics Technology) |
| File Size | 3.85 MB |
| Description | 16M x 16 Bit x 8 Banks DDR3 SDRAM |
| Datasheet |
 M15T2G16128A-BDBG2L Datasheet
|
|
|

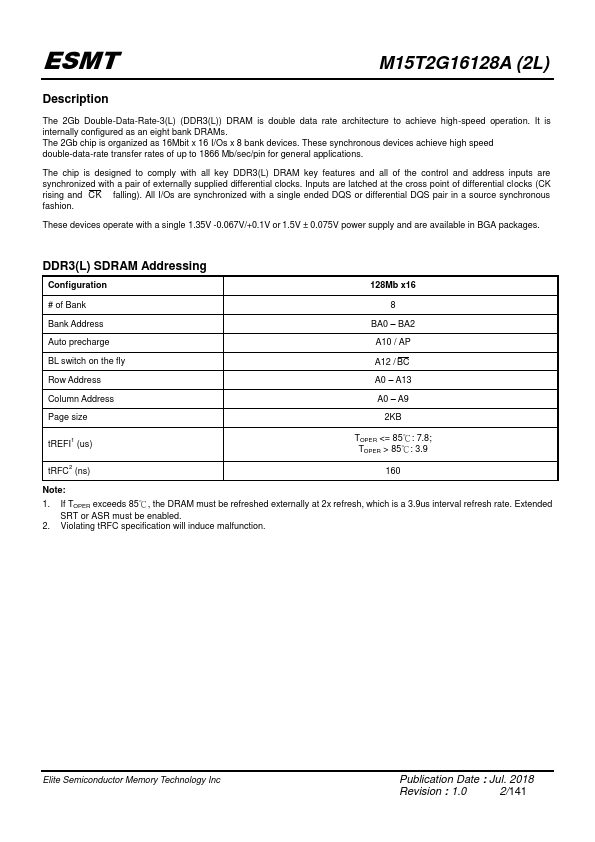

General Description
The 2Gb Double-Data-Rate-3(L) (DDR3(L)) DRAM is double data rate architecture to achieve high-speed operation.
It is internally configured as an eight bank DRAMs.
The 2Gb chip is organized as 16Mbit x 16 I/Os x 8 bank devices.

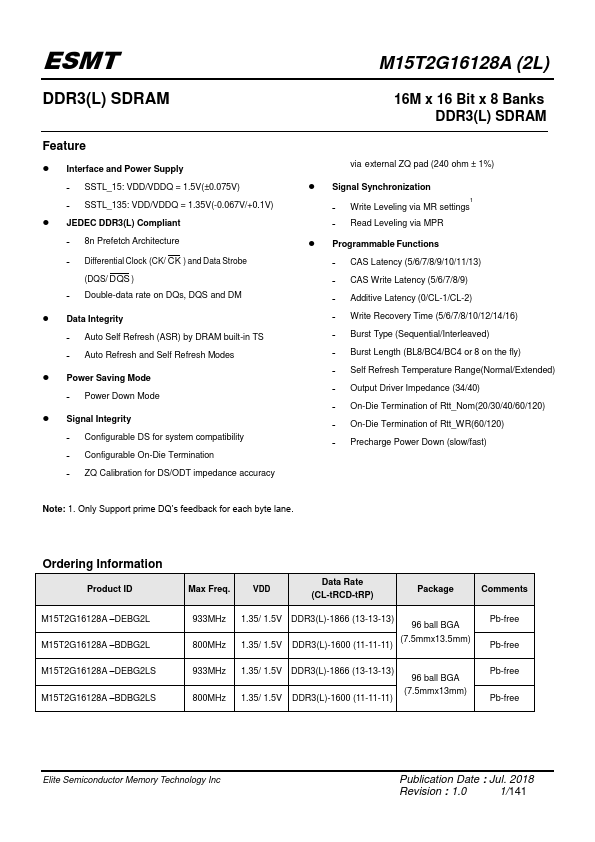

Key Features
- and all of the control and address inputs are synchronized with a pair of externally supplied differential clocks. Inputs are latched at the cross point of differential clocks (CK rising and CK falling). All I/Os are synchronized with a single ended DQS or differential DQS pair in a source synchronous fashion. These devices operate with a single 1.35V -0.067V/+0.1V or 1.5V ± 0.075V power supply and are available in BGA packages. DDR3(L) SDRAM Addressing Configuration 128Mb x16 # of Bank 8.
