M15T2G16128A-BDBIG2L datasheet by ESMT (Elite Semiconductor Microelectronics Technology).
This datasheet includes multiple variants, all published together in a single manufacturer document.
| Part number | M15T2G16128A-BDBIG2L |
|---|---|
| Datasheet | M15T2G16128A-BDBIG2L M15T2G16128A Datasheet (PDF) |
| File Size | 3.85 MB |
| Manufacturer | ESMT (Elite Semiconductor Microelectronics Technology) |
| Description | 16M x 16 Bit x 8 Banks DDR3 SDRAM |
|
|

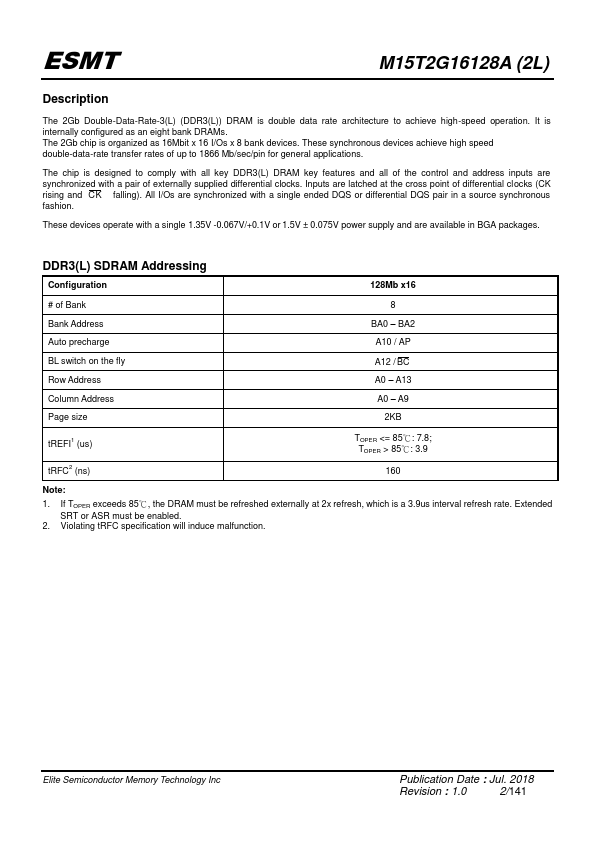

The 2Gb Double-Data-Rate-3(L) (DDR3(L)) DRAM is double data rate architecture to achieve high-speed operation. It is internally configured as an eight bank DRAMs. The 2Gb chip is organized as 16Mbit x 16 I/Os x 8 bank devices.
