M15T2G16128A-BDBG2LS
M15T2G16128A-BDBG2LS is 16M x 16 Bit x 8 Banks DDR3 SDRAM manufactured by Elite Semiconductor Microelectronics Technology.
- Part of the M15T2G16128A comparator family.
- Part of the M15T2G16128A comparator family.

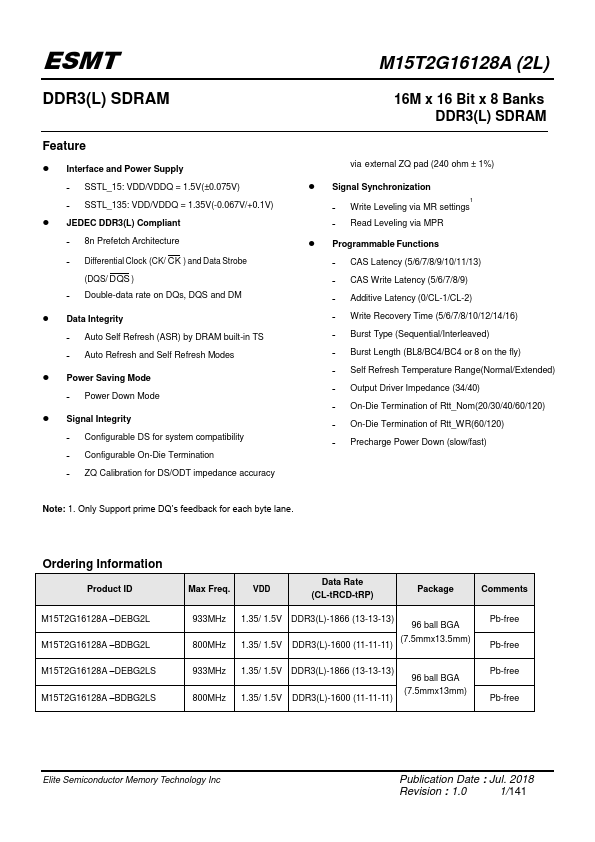

ESMT
DDR3(L) SDRAM
Feature
- Interface and Power Supply ˗ SSTL_15: VDD/VDDQ = 1.5V(±0.075V) ˗ SSTL_135: VDD/VDDQ = 1.35V(-0.067V/+0.1V)
- JEDEC DDR3(L) pliant ˗ 8n Prefetch Architecture ˗ Differential Clock (CK/ CK ) and Data Strobe (DQS/ DQS ) ˗ Double-data rate on DQs, DQS and DM
- Data Integrity ˗ Auto Self Refresh (ASR) by DRAM built-in TS ˗ Auto Refresh and Self Refresh Modes
- Power Saving Mode ˗ Power Down Mode
- Signal Integrity ˗ Configurable DS for system patibility ˗ Configurable On-Die Termination ˗ ZQ Calibration for DS/ODT impedance accuracy
M15T2G16128A (2L)
16M x 16 Bit x 8 Banks DDR3(L) SDRAM via external ZQ pad (240 ohm ± 1%)
- Signal Synchronization
˗ Write...
