ES9821 - 32-bit High Performance 2-Channel ADC

General Description

Unprecedented Dynamic Range and Ultra-Low Distortion Up to PCM 768kHz 8 Presets of Digital Optimal Filters PCM, TDM, and S/PDIF Outputs are Available Configured by microcontroller or other I²C/SPI master, or pins through Hardware Mode 200kHz Bandwidth Enabling Higher Resolution at Higher Sample Rate

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by ESS Technology

Part Number Description
ES9821Q 32-bit High Performance 2-Channel ADC
ES9820 32-bit High-Performance 2-Channel ADC
ES9822PRO 32-bit High-Performance 2-Channel ADC
ES9823MPRO 2-Channel High Performance SMART ADC
ES9823PRO 2-Channel High Performance SMART ADC

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

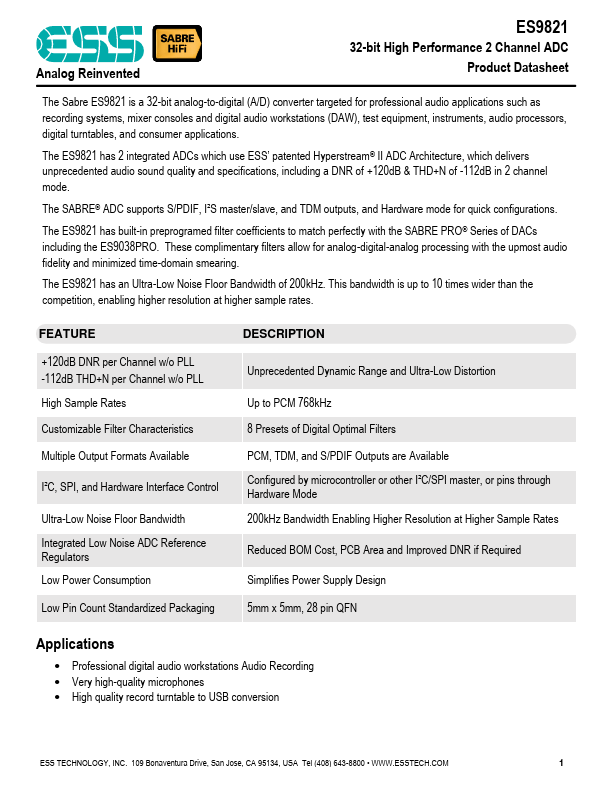

Analog Reinvented ES9821 32-bit High Performance 2 Channel ADC Product Datasheet The Sabre ES9821 is a 32-bit analog-to-digital (A/D) converter targeted for professional audio applications such as recording systems, mixer consoles and digital audio workstations (DAW), test equipment, instruments, audio processors, digital turntables, and consumer applications. The ES9821 has 2 integrated ADCs which use ESS’ patented Hyperstream® II ADC Architecture, which delivers unprecedented audio sound quality and specifications, including a DNR of +120dB & THD+N of -112dB in 2 channel mode. The SABRE® ADC supports S/PDIF, I²S master/slave, and TDM outputs, and Hardware mode for quick configurations.
