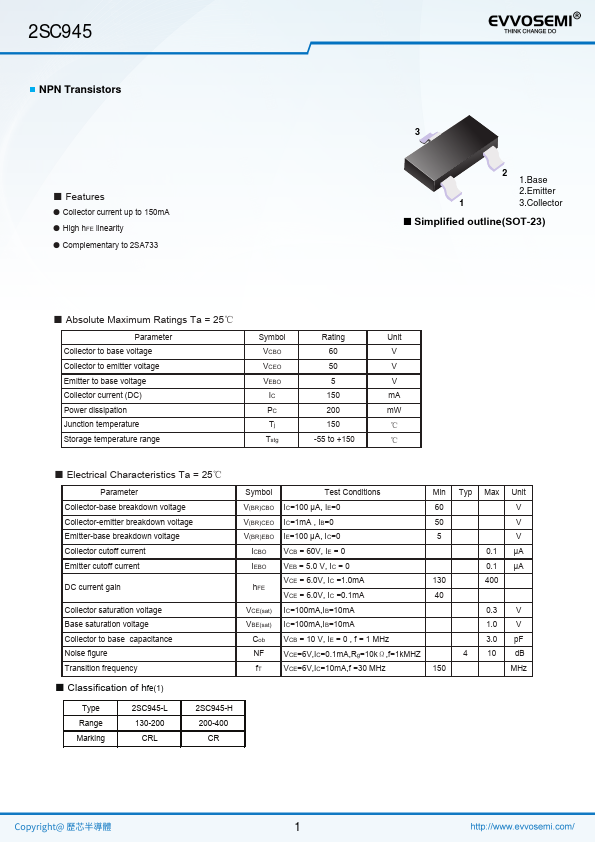

2SC945
Features
- Collector current up to 150m A
- High h FE linearity
- plementary to 2SA733
2 1.Base
2.Emitter
3.Collector
- Simplified outline(SOT-23)
- Absolute Maximum Ratings Ta = 25℃
Parameter Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current (DC) Power dissipation Junction temperature Storage temperature range
Symbol
Rating
Unit
VCBO
VCEO
VEBO
150 m A
200 m W
Tj
℃
Tstg
-55 to +150
℃
- Electrical Characteristics Ta = 25℃
Parameter Collector-base breakdown voltage Collector-emitter breakdown voltage Emitter-base breakdown voltage Collector cutoff current Emitter cutoff current
DC current gain
Collector saturation voltage Base saturation voltage Collector to base capacitance Noise figure Transition frequency
Symbol
Test Conditions
Min Typ Max Unit
V(BR)CBO IC=100 μA,...
