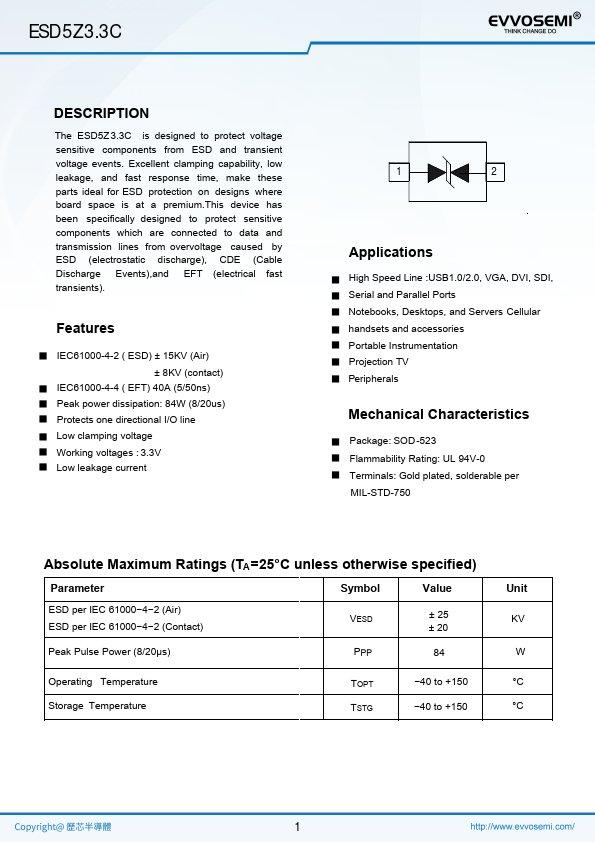

ESD5Z3.3C Overview
The ESD5Z 3.3C is designed to protect voltage sensitive ponents from ESD and transient voltage events. Excellent clamping capability, low leakage, and fast response time, make these parts ideal for ESD protection on designs where board space is at a premium.This device has been specifically designed to protect sensitive ponents which are connected to data and transmission lines from overvoltage caused by ESD...
ESD5Z3.3C Key Features
- IEC61000-4-2 ( ESD) ± 15KV (Air) ± 8KV (contact)
- IEC61000-4-4 ( EFT) 40A (5/50ns)
- Peak power dissipation: 84W (8/20us)
- Protects one directional I/O line
- Low clamping voltage
- Working voltages : 3.3V
- Low leakage current
