EMP8040 - Low-Dropout Linear Regulator

Datasheet Summary

Description

The EMP8040 is a high voltage, low quiescent current, low dropout regulator with 100mA output driving capacity.

Features

  • g g g g g g g g 100mA guaranteed output current 500mV typical dropout at Io=100mA 10µA typical quiescent current 1µA typical shutdown mode 3.0V to 36V input range Stable with small ceramic output capacitors (1µF) Over temperature and over current protection ±2.5% output voltage tolerance Typical.

📥 Download Datasheet

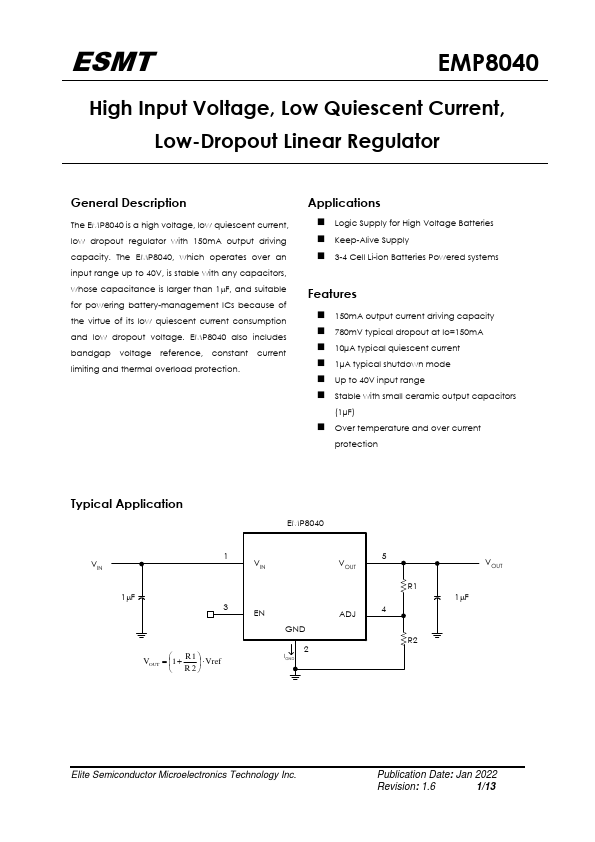

Datasheet preview – EMP8040

Datasheet Details

Part number EMP8040
Manufacturer Elite Semiconductor
File Size 401.97 KB
Description Low-Dropout Linear Regulator
Datasheet download datasheet EMP8040 Datasheet

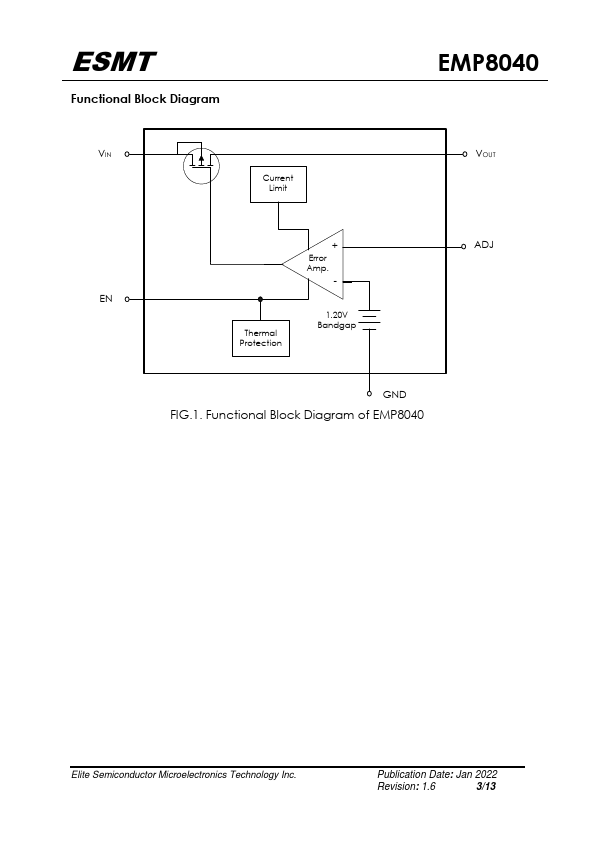

Additional preview pages of the EMP8040 datasheet.

📁 Similar Datasheet

  • EMP8165 - 2A Ultra Low Dropout Voltage Regulator (ESMT)
  • EMP8165A - 2A Ultra Low Dropout Voltage Regulator (ESMT)
  • EMP85N10CS - Single N-Channel Logic Level Enhancement Mode Field Effect Transistor (Excelliance MOS)
  • EMP85N10H - Single N-Channel Logic Level Enhancement Mode Field Effect Transistor (Excelliance MOS)
  • EMP-8603 - Mini-PCI Adapter (EnGenius)
  • EMP11 - Switching diode (Rohm)
  • EMP16N04HS - MOSFET (Excelliance MOS)
  • EMP18K03HPCS - Dual N-Channel Logic Level Enhancement Mode Field Effect Transistor (Excelliance MOS)
  • EMP19K03HPC - Dual N-Channel Logic Level Enhancement Mode Field Effect Transistor (Excelliance MOS)
  • EMP19K03HPCS - N-Channel Logic Level Enhancement Mode Field Effect Transistor (Excelliance MOS)
Other Datasheets by Elite Semiconductor
  • EMP8041 - Low-Dropout Linear Regulator
  • EMP8042 - Low-Dropout Linear Regulator
  • EMP8046 - 50mA Ultra-Low Quiescent Current LDO Linear Regulator
  • EMP8020 - 300mA CMOS Linear Regulator
  • EMP8021 - 600mA CMOS Linear Regulator
  • EMP8110 - 1.5A Fixed Voltage LDO Linear Regulator
  • EMP8130 - 300mA CMOS Linear Regulator
  • EMP8731 - 300mA CMOS Linear Regulator

Full PDF Text Transcription

Click to expand full text
ESMT/EMP EMP8040 High Input Voltage, Low Quiescent Current, Low-Dropout Linear Regulator General Description The EMP8040 is a high voltage, low quiescent current, low dropout regulator with 100mA output driving capacity. The EMP8040, which operates over an input range of 3V to 36V, is stable with any capacitors, whose capacitance is larger than 1μF, and suitable for powering battery-management ICs because of the virtue of its low quiescent current consumption and low dropout voltage. EMP8040 also includes bandgap voltage reference, constant current limiting and thermal overload protection.
