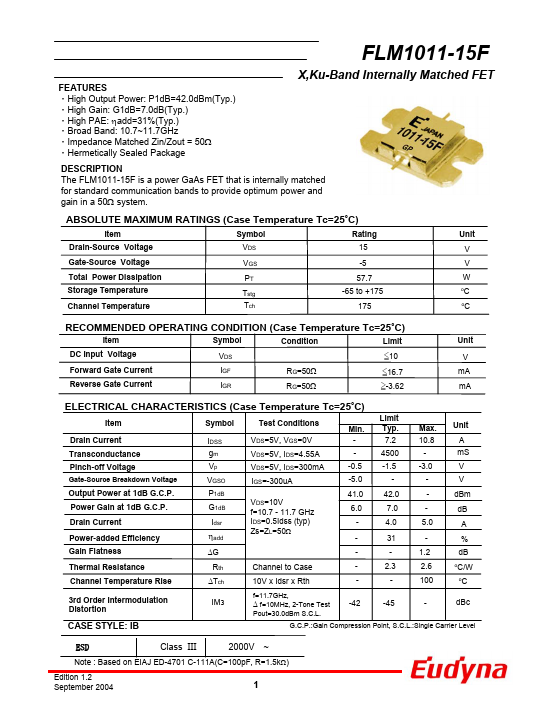

FLM1011-15F
FLM1011-15F is Internally Matched FET manufactured by Eudyna Devices.
FEATURES
- High Output Power: P1d B=42.0d Bm(Typ.)
- High Gain: G1d B=7.0d B(Typ.)
- High PAE: ηadd=31%(Typ.)
- Broad Band: 10.7~11.7GHz
- Impedance Matched Zin/Zout = 50Ω
- Hermetically Sealed Package
X,Ku-Band Internally Matched FET
DESCRIPTION
The FLM1011-15F is a power Ga As FET that is internally matched for standard munication bands to provide optimum power and gain in a 50Ω system.
ABSOLUTE MAXIMUM RATINGS (Case Temperature Tc=25°C)
Item
Symbol
Rating
Unit
Drain-Source Voltage
Gate-Source Voltage
-5
Total Power Dissipation
Storage Temperature
Tstg
Channel Temperature
Tch
-65 to +175 o C
175 o C
REMENDED OPERATING CONDITION (Case Temperature Tc=25°C)
Item
Symbol
Condition
Limit
Unit
DC Input...
