FLM5964-12F Datasheet | Eudyna Devices

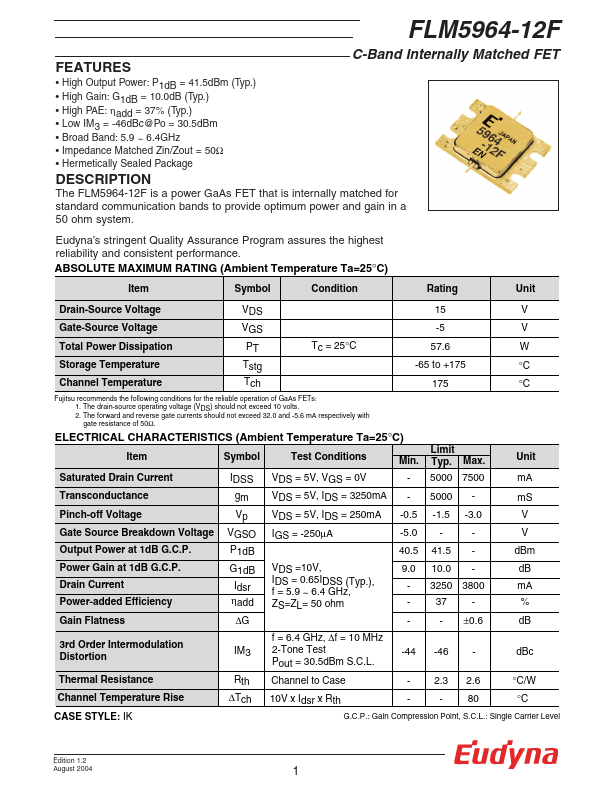

FEATURES C-Band Internally Matched FET - High Output Power: P1d B = 41.5d Bm (Typ.) - High Gain: G1d B = 10.0d B (Typ.) - High PAE: ηadd = 37% (Typ.) - Low IM3 = -46d Bc@Po = 30.5d Bm - Broad Band: 5.9 ~ 6.4GHz - Impedance Matched Zin/Zout = 50Ω - Hermetically Sealed Package DESCRIPTION The FLM5964-12F is a power Ga As FET that is internally matched for standard munication bands to provide optimum power and gain in a 50 ohm system. Eudyna’s stringent Quality Assurance Program assures the highest reliability and consistent performance. ABSOLUTE MAXIMUM RATING (Ambient Temperature Ta=25°C) Item Symbol Condition Rating Unit Drain-Source Voltage Gate-Source Voltage -5 Total Power Dissipation Tc = 25°C Storage Temperature Tstg -65 to +175 °C Channel Temperature Tch °C Fujitsu remends the following conditions for the reliable operation of Ga As FETs: 1. The drain-source operating voltage (VDS) should not exceed 10 volts. 2. The forward and reverse gate currents should not exceed 32.0 and -5.6 m A respectively with gate resistance of 50Ω. ELECTRICAL CHARACTERISTICS (Ambient Temperature Ta=25°C) Item Symbol Test...
