FLM5964-12F - C-Band Internally Matched FET

Description

D .

The FLM5964-12F is a power GaAs FET that is internally matched for w standard communication bands to provide optimum power and gain in a w 50 ohm system.

Features

  • . c.
  • High Output Power: P1dB = 41.5dBm (Typ. ) U.
  • High Gain: G1dB = 10.0dB (Typ. ) 4 t.
  • High PAE: ηadd = 37% (Typ. ) e = 30.5dBm.
  • Low IM3 = -46dBc@Po e.
  • Broad Band: 5.9h ~ 6.4GHz S.
  • Impedance Matched Zin/Zout = 50Ω aSealed Package t.
  • Hermetically a.

📥 Download Datasheet

Datasheet preview – FLM5964-12F

Datasheet Details

Part number FLM5964-12F
Manufacturer Eudyna Devices
File Size 316.05 KB
Description C-Band Internally Matched FET
Datasheet download datasheet FLM5964-12F Datasheet

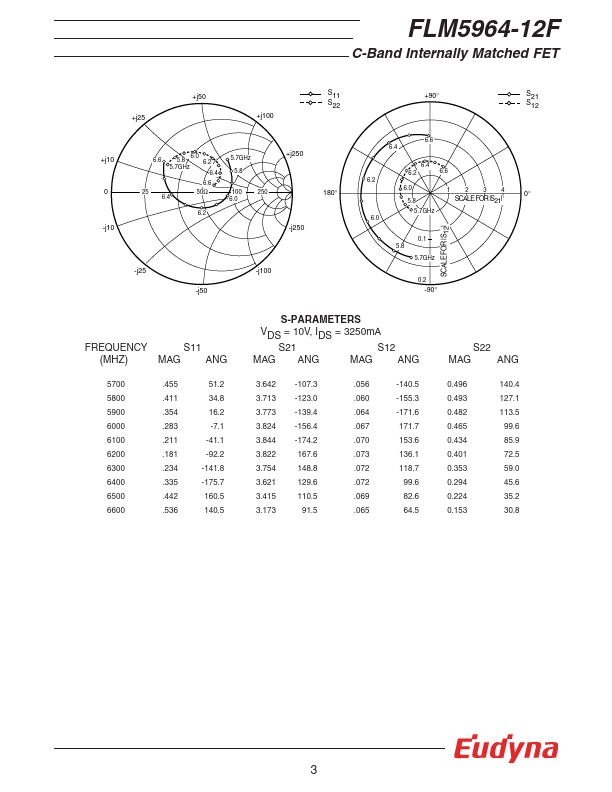

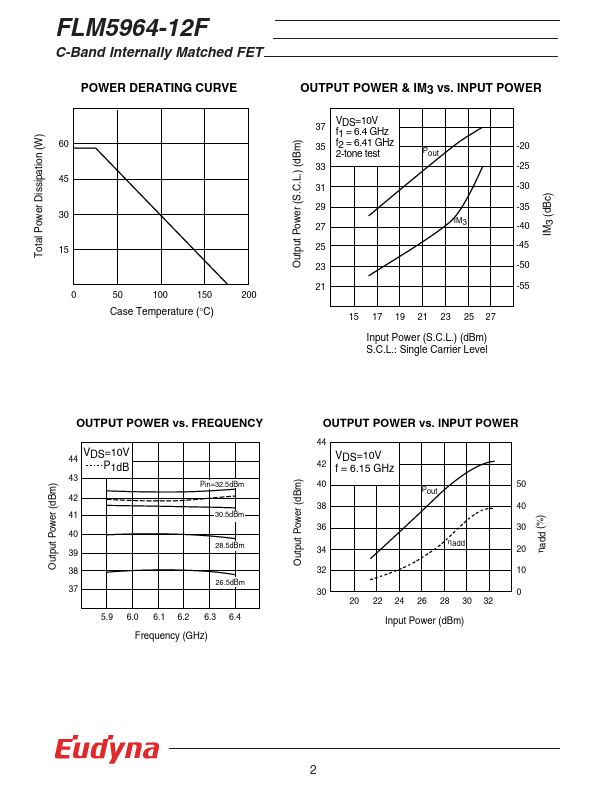

Additional preview pages of the FLM5964-12F datasheet.

📁 Similar Datasheet

Other Datasheets by Eudyna Devices

Full PDF Text Transcription

Click to expand full text
w m C-Band Internally Matched FET o FEATURES .c • High Output Power: P1dB = 41.5dBm (Typ.) U • High Gain: G1dB = 10.0dB (Typ.) 4 t • High PAE: ηadd = 37% (Typ.) e = 30.5dBm • Low IM3 = -46dBc@Po e • Broad Band: 5.9h ~ 6.4GHz S • Impedance Matched Zin/Zout = 50Ω aSealed Package t • Hermetically a DESCRIPTION D . The FLM5964-12F is a power GaAs FET that is internally matched for w standard communication bands to provide optimum power and gain in a w 50 ohm system. Item Drain-Source Voltage Gate-Source Voltage Total Power Dissipation Storage Temperature Channel Temperature Symbol VDS VGS PT Tstg Tch Condition FLM5964-12F Eudyna’s stringent Quality Assurance Program assures the highest reliability and consistent performance.
