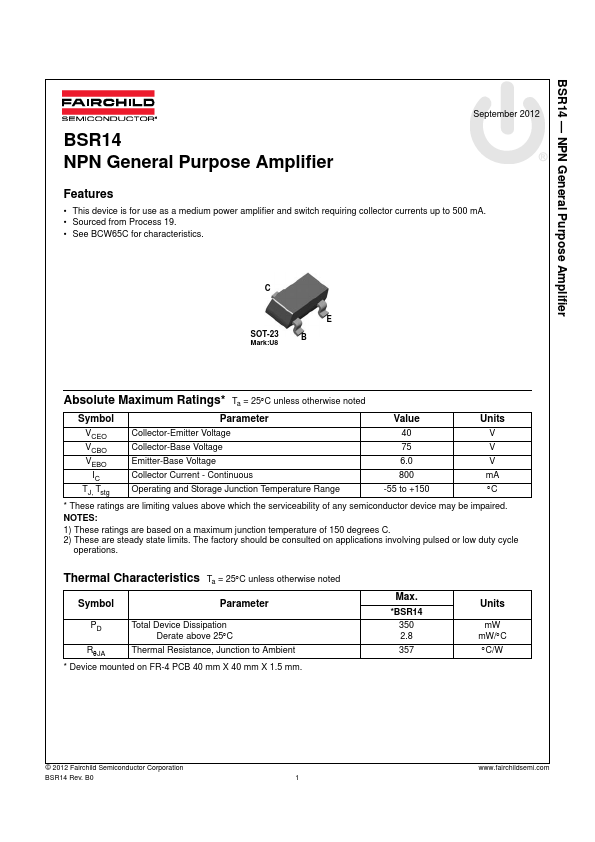

BSR14 Datasheet NPN General Purpose Amplifier

Manufacturer: Fairchild (now onsemi)

Overview: BSR14 — NPN General Purpose Amplifier BSR14 NPN General Purpose Amplifier September.

BSR14 datasheet preview

Datasheet Details

Part number	BSR14
Manufacturer	Fairchild (now onsemi)
File Size	129.08 KB
Description	NPN General Purpose Amplifier
Datasheet	BSR14_FairchildSemiconductor.pdf

Key Features

This device is for use as a medium power amplifier and switch requiring collector currents up to 500 mA.
Sourced from Process 19.
See BCW65C for characteristics. C SOT-23 Mark:U8 E B Absolute Maximum Ratings.

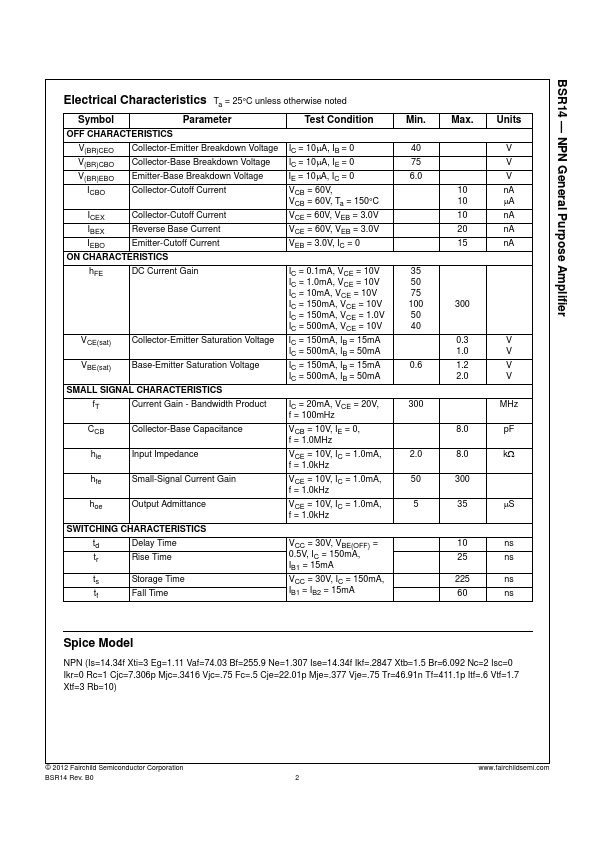

Ta = 25C unless otherwise noted Symbol Parameter Value Units VCEO Collector-Emitter Voltage 40 V VCBO Collector-Base Voltage 75 V VEBO Emitter-Base Voltage 6.0 V IC Collector Current - Continuous 800 mA TJ, Tstg Operating and Stora.
