BSR14 Datasheet NPN Switching Transistors

Manufacturer: Kexin Semiconductor

Overview: SMD Type TransistIoCrs NPN Switching Transistors BSR13,BSR14.

Download the BSR14 datasheet PDF. This datasheet also includes the BSR13 variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

BSR14 npn switching transistors by Kexin Semiconductor - Datasheet Preview

Datasheet Details

Part number	BSR14
Manufacturer	Kexin Semiconductor
File Size	37.12 KB
Description	NPN Switching Transistors
Download	BSR14 Download (PDF)

Key Features

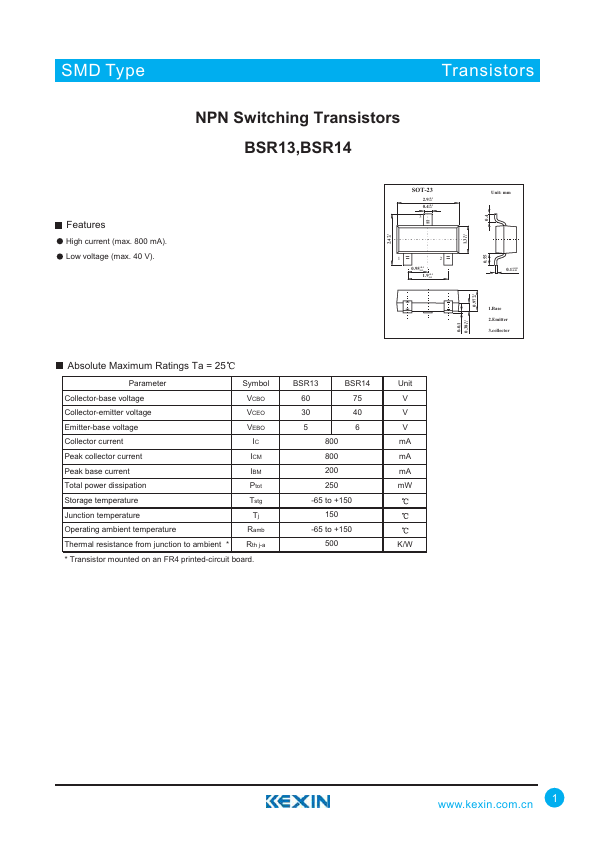

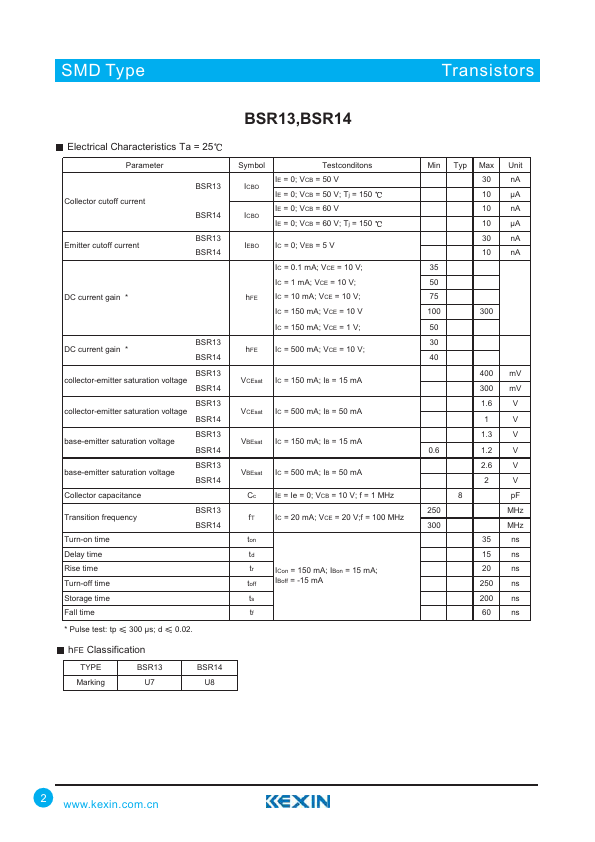

High current (max. 800 mA). Low voltage (max. 40 V). +0.1 2.4 -0.1 SOT-23 2.9+0.1 -0.1 0.4+0.1 -0.1 3 1 2 0.95+0.1 -0.1 1.9+0.1 -0.1 Absolute Maximum Ratings Ta = 25 Parameter Symbol BSR13 BSR14 Unit Collector-base voltage VCBO 60 75 V Collector-emitter voltage VCEO 30 40 V Emitter-base voltage VEBO 5 6 V Collector current IC 800 mA Peak collector current ICM 800 mA Peak base current IBM 200 mA Total power dissipation Ptot 250 mW Storage temperature Ts.
