BSR19A Datasheet NPN High-Voltage Transistors

Manufacturer: Kexin Semiconductor

Overview: SMD Type Transistors NPN High-Voltage Transistors BSR19,BSR19A.

Download the BSR19A datasheet PDF. This datasheet also includes the BSR19 variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

BSR19A npn high-voltage transistors by Kexin Semiconductor - Datasheet Preview

Datasheet Details

Part number	BSR19A
Manufacturer	Kexin Semiconductor
File Size	35.84 KB
Description	NPN High-Voltage Transistors
Download	BSR19A Download (PDF)

Key Features

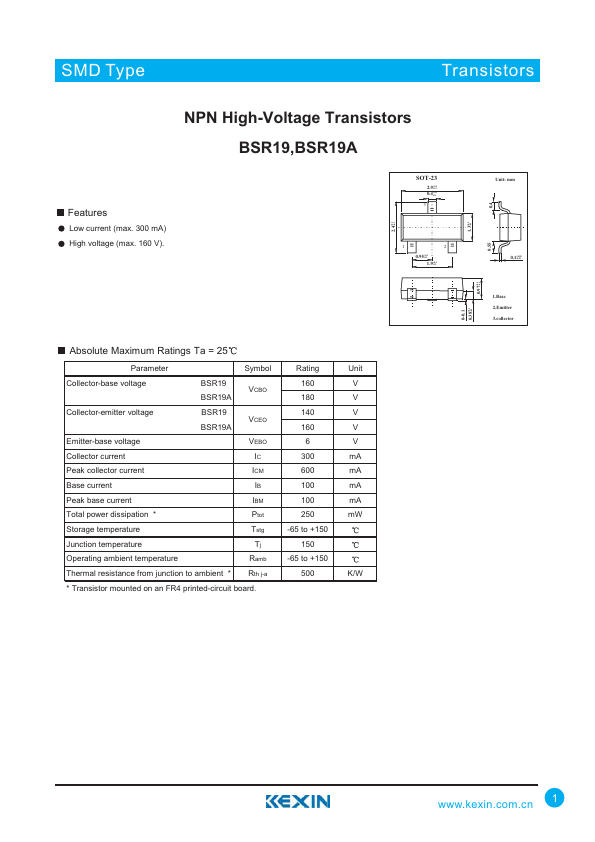

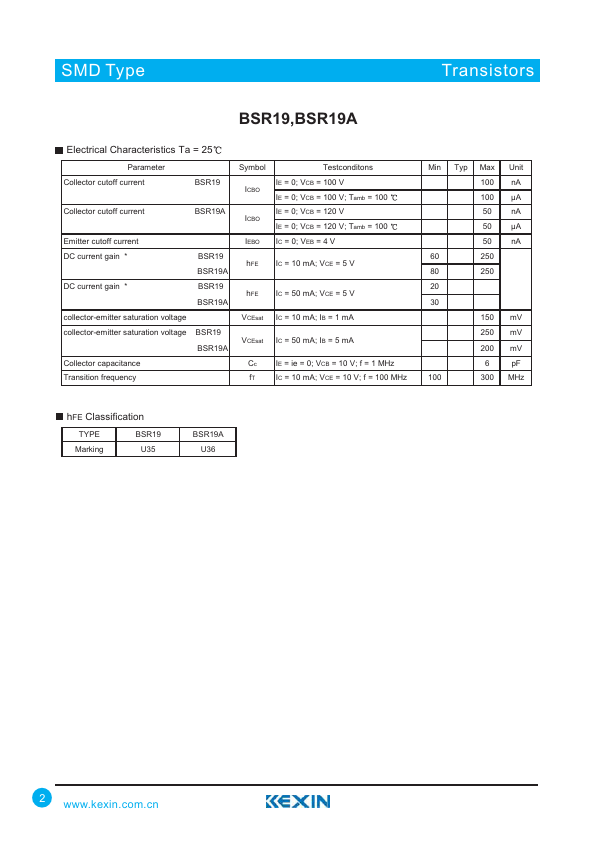

Low current (max. 300 mA) High voltage (max. 160 V). +0.1 2.4 -0.1 SOT-23 2.9+0.1 -0.1 0.4+0.1 -0.1 3 1 2 0.95+0.1 -0.1 1.9+0.1 -0.1 Absolute Maximum Ratings Ta = 25 Parameter Symbol Rating Unit Collector-base voltage BSR19 160 V VCBO BSR19A 180 V Collector-emitter voltage BSR19 140 V VCEO BSR19A 160 V Emitter-base voltage VEBO 6 V Collector current IC 300 mA Peak collector current ICM 600 mA Base current IB 100 mA Peak base current IBM 100 mA Total.
