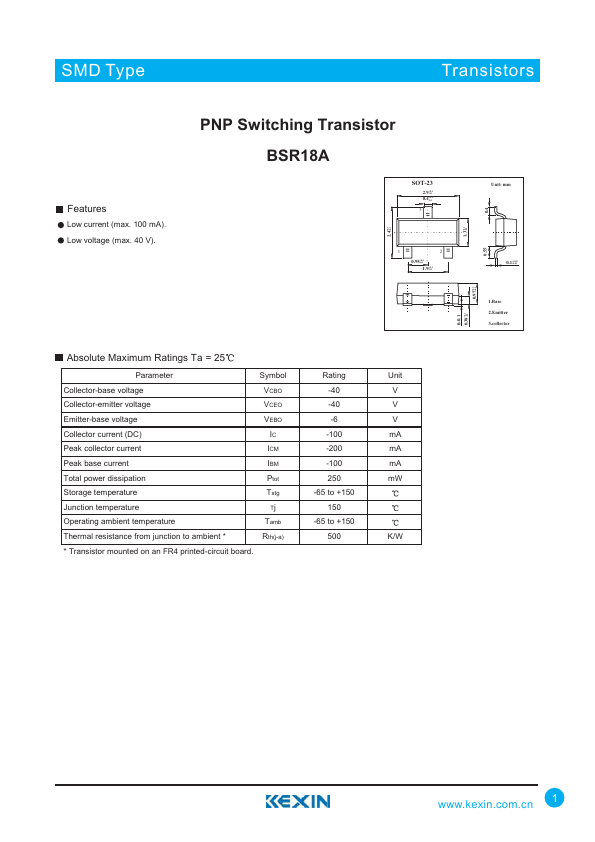

BSR18A
Features
Low current (max. 100 m A). Low voltage (max. 40 V).
PNP Switching Transistor
SOT-23
2.9+0.1 -0.1
0.4+0.1 -0.1
+0.1 2.4 -0.1
0.95+0.1 -0.1 1.9+0.1 -0.1
Absolute Maximum Ratings Ta = 25
Parameter
Symbol
Rating
Unit
Collector-base voltage
VCBO
-40
Collector-emitter voltage
VCEO
-40
Emitter-base voltage
VEBO
-6
Collector current (DC)
-100 m A
Peak collector current
-200 m A
Peak base current
-100 m A
Total power dissipation
Ptot
250 m...
