KSP92 - PNP Epitaxial Silicon Transistor

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
KSP92 Dip Switch OTAX
KSP92 P-channel enhancement mode vertical D-MOS transistor Kexin
KSP92 PNP Epitaxial Silicon Transistor onsemi
KSP9435A -30V P-Channel MOSFET Korsun Semiconductor
KSP-1MLR2 Silicon Photodiode Mounted KODENSHI KOREA CORP

Other Datasheets by Fairchild (now onsemi)

Part Number Description
KSP93 PNP Epitaxial Silicon Transistor
KSP94 High Voltage Transistor
KSP05 Amplifier Transistor
KSP06 Amplifier Transistor
KSP10 VHF/UHF transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

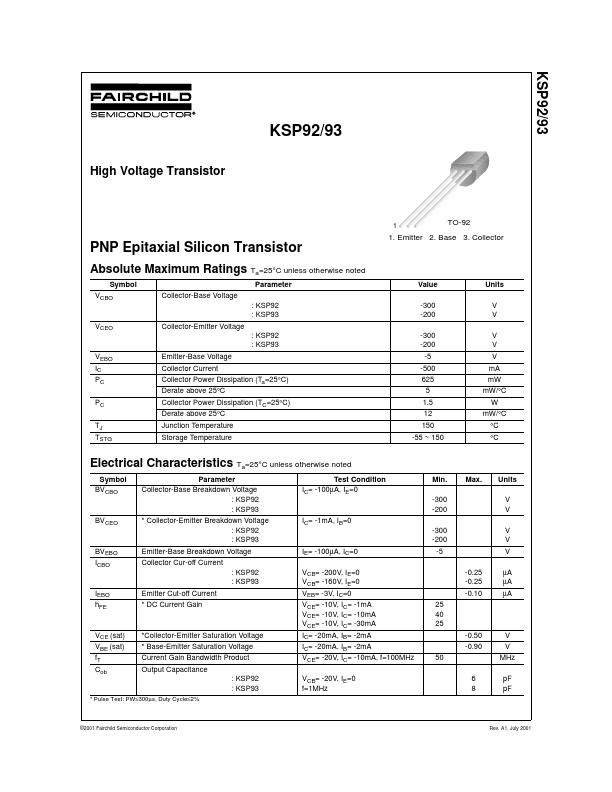

KSP92/93 High Voltage Transistor KSP92/93 PNP Epitaxial Silicon Transistor Absolute Maximum Ratings Ta=25°C unless otherwise noted Symbol Parameter VCBO Collector-Base Voltage : KSP92 : KSP93 VCEO Collector-Emitter Voltage : KSP92 : KSP93 VEBO IC PC Emitter-Base Voltage Collector Current Collector Power Dissipation (Ta=25°C) Derate above 25°C PC Collector Power Dissipation (TC=25°C) Derate above 25°C TJ TSTG Junction Temperature Storage Temperature 1 TO-92 1. Emitter 2. Base 3. Collector Value -300 -200 -300 -200 -5 -500 625 5 1.
