KSP92 - P-channel enhancement mode vertical D-MOS transistor

Key Features

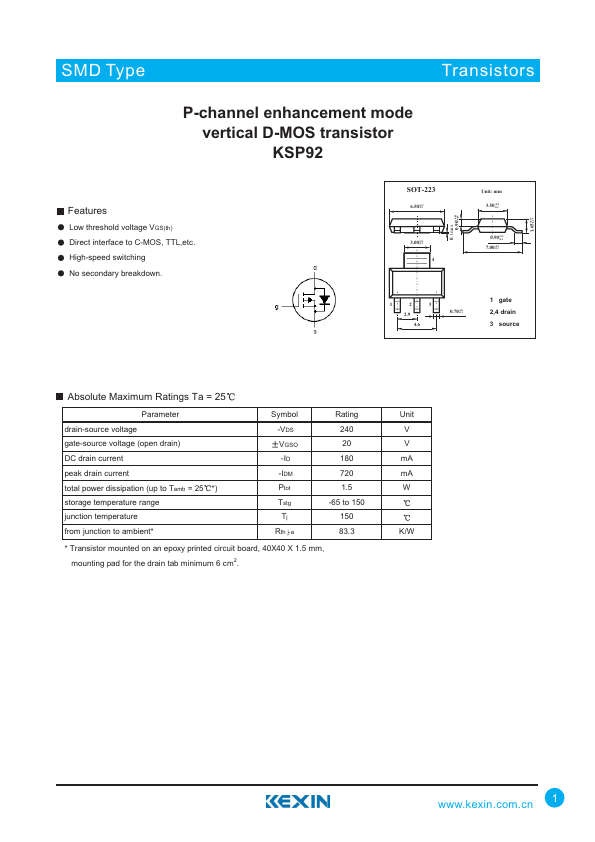

  • Low threshold voltage VGS(th) Direct interface to C-MOS, TTL,etc. High-speed switching No secondary breakdown. SOT-223 6.50+0.2 -0.2 3.00+0.1 -0.1 4 Unit: mm 3.50+0.2 -0.2 0.90+0.2 -0.2 7.00+0.3 -0.3 1 2 3 2.9 4.6 0.70+0.1 -0.1 1 gate 2,4 drain 3 source Absolute Maximum Ratings Ta = 25 Parameter drain-source voltage gate-source voltage (open drain) DC drain current peak drain current total power dissipation (up to Tamb = 25.
  • ) storage temperature range junction temperature from ju.
