KSP92 - PNP Epitaxial Silicon Transistor

onsemi

General Description

High Voltage Transistor

Key Features

These Devices are Pb.
Free, Halogen Free/BFR Free, Beryllium Free and are RoHS Compliant.

📥 Download Datasheet

KSP92 pnp epitaxial silicon transistor by onsemi - Datasheet Preview

Datasheet Details

Part number	KSP92
Manufacturer	onsemi
File Size	186.56 KB
Description	PNP Epitaxial Silicon Transistor
Datasheet	KSP92 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
KSP92	Dip Switch	OTAX
KSP92	P-channel enhancement mode vertical D-MOS transistor	Kexin
KSP92	PNP Epitaxial Silicon Transistor	Fairchild Semiconductor
KSP93	PNP Epitaxial Silicon Transistor	Fairchild Semiconductor
KSP94	High Voltage Transistor	Fairchild Semiconductor

Other Datasheets by onsemi

Part Number	Description
KSP42	NPN Epitaxial Silicon Transistor
KSP43	NPN Epitaxial Silicon Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

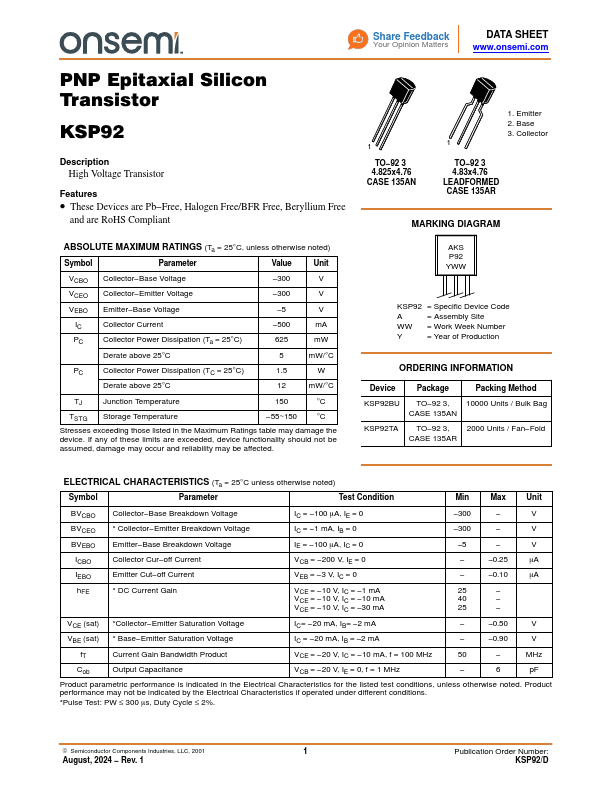

Share Feedback Your Opinion Matters DATA SHEET www.onsemi.com PNP Epitaxial Silicon Transistor KSP92 Description High Voltage Transistor Features • These Devices are Pb−Free, Halogen Free/BFR Free, Beryllium Free and are RoHS Compliant ABSOLUTE MAXIMUM RATINGS (Ta = 25°C, unless otherwise noted) Symbol Parameter Value Unit VCBO VCEO VEBO IC PC Collector−Base Voltage Collector−Emitter Voltage Emitter−Base Voltage Collector Current Collector Power Dissipation (Ta = 25°C) Derate above 25°C −300 −300 −5 −500 625 5 V V V mA mW mW/°C PC Collector Power Dissipation (TC = 25°C) Derate above 25°C 1.5 W 12 mW/°C TJ Junction Temperature 150 °C TSTG Storage Temperature −55~150 °C Stresses exceeding those listed in the Maximum Ratings table may damage the device.
