1SS184 Datasheet | Formosa MS

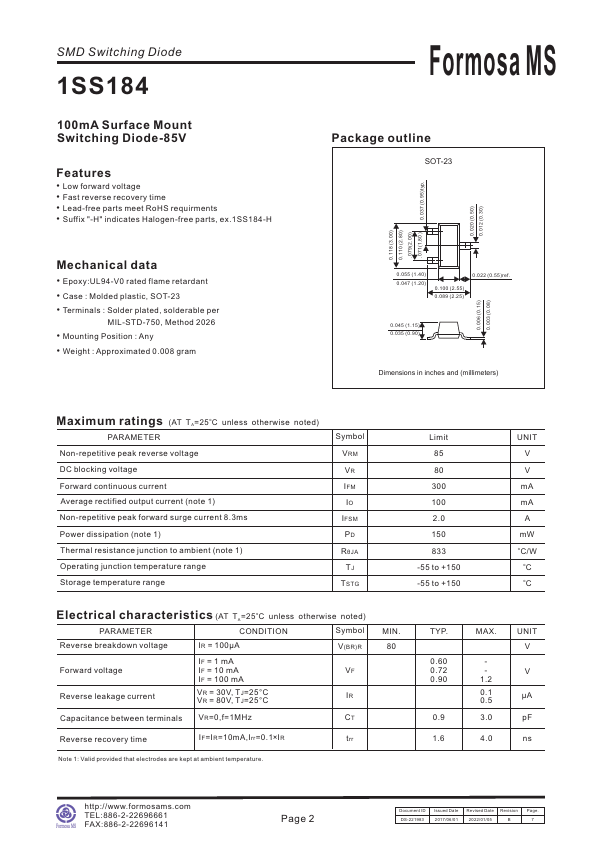

Features - Low forward voltage - Fast reverse recovery time - Lead-free parts meet Ro HS requirments - Suffix "-H" indicates Halogen-free parts, ex.1SS184-H Mechanical data - Epoxy:UL94-V0 rated flame retardant - Case : Molded plastic, SOT-23 - Terminals : Solder plated, solderable per MIL-STD-750, Method 2026 - Mounting Position : Any - Weight : Approximated 0.008 gram Formosa MS Package outline SOT-23 0.037 (0.95)typ. 0.020 (0.50) 0.012 (0.30) 0.118 (3.00) 0.110 (2.80) .079(2.00) .071(1.80) 0.055 (1.40) 0.047 (1.20) 0.100 (2.55) 0.089 (2.25) 0.022 (0.55)ref. 0.006 (0.15) 0.003 (0.08) 0.045 (1.15) 0.035 (0.90) Dimensions in inches and (millimeters) Maximum ratings (AT TA=25o C unless otherwise noted) PARAMETER Non-repetitive peak reverse voltage DC blocking voltage Forward continuous current Average rectified output current (note 1) Non-repetitive peak forward surge current 8.3ms Power dissipation (note 1) Thermal resistance junction to ambient (note 1) Operating junction temperature range Storage temperature range Symbol VRM VR IFM IO IFSM PD RθJA TJ TSTG Limit 85 80 300 100 2.0 150 833 -55 to +150 -55 to +150 UNIT V V m A m A A m W o C/W o C o C Electrical characteristics (AT TA=25o C unless otherwise noted) PARAMETER CONDITION Symbol Reverse breakdown voltage IR = 100μA V(BR)R IF = 1 m A Forward voltage IF = 10 m...
