BAS16TW Datasheet | Formosa MS

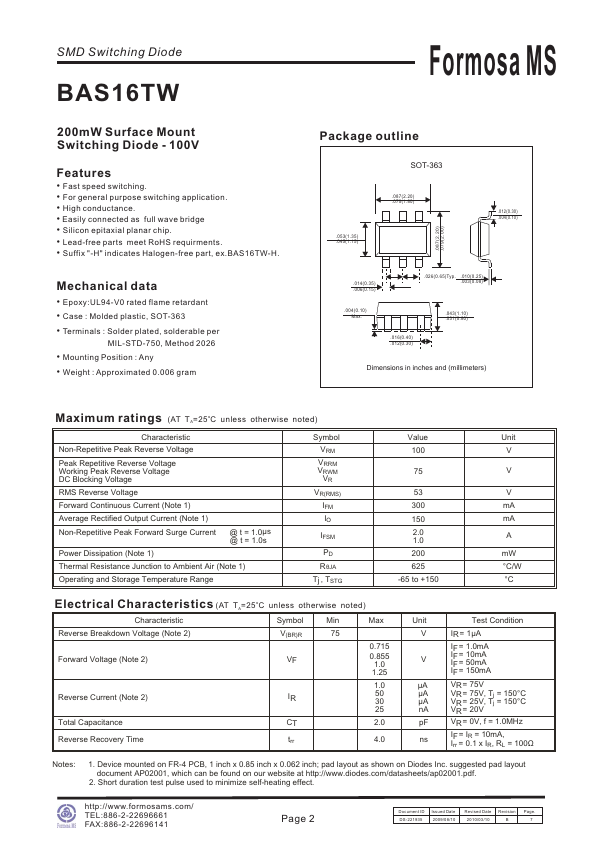

Features - Fast speed switching. - For general purpose switching application. - High conductance. - Easily connected as full wave bridge - Silicon epitaxial planar chip. - Lead-free parts meet Ro HS requirments. - Suffix "-H" indicates Halogen-free part, ex.BAS16TW-H. Mechanical data - Epoxy:UL94-V0 rated flame retardant - Case : Molded plastic, SOT-363 - Terminals : Solder plated, solderable per MIL-STD-750, Method 2026 - Mounting Position : Any - Weight : Approximated 0.006 gram Formosa MS Package outline SOT-363 .087(2.20) .070(1.80) .053(1.35) .045(1.15) .012(0.30) .004(0.10) .087(2.20) .079(2.00) .014(0.35) .006(0.15) .026(0.65)Typ. .010(0.25) .003(0.08) .004(0.10) Max. .016(0.40) .012(0.30) .043(1.10) .031(0.80) Dimensions in inches and (millimeters) Maximum ratings (AT TA=25o C unless otherwise noted) Characteristic Non-Repetitive Peak Reverse Voltage Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltage Forward Continuous Current (Note 1) Average Rectified Output Current (Note 1) Non-Repetitive Peak Forward Surge Current @ t = 1.0μs @ t = 1.0s Power Dissipation (Note 1) Thermal Resistance Junction to Ambient Air (Note 1) Operating and Storage Temperature Range Symbol VRM VRRM VRWM VR VR(RMS) IFM...
