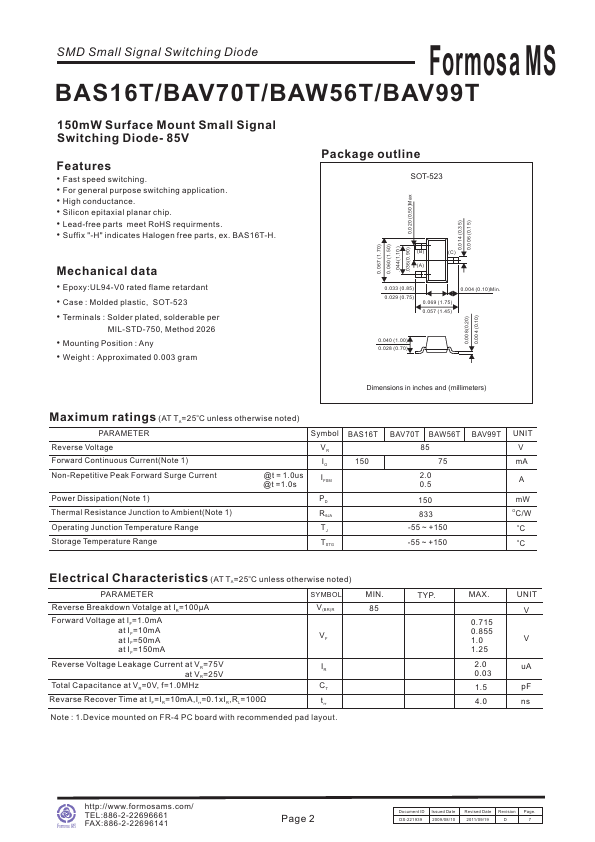

BAS16T Description
SMD Small Signal Switching Diode Formosa MS BAS16T/BAV70T/BAW56T/BAV99T 150mW Surface Mount Small Signal Switching Diode- 85V.
BAS16T Key Features
- Fast speed switching
- For general purpose switching application
- High conductance
- Silicon epitaxial planar chip
- Lead-free parts meet RoHS requirments
- Suffix "-H" indicates Halogen free parts, ex. BAS16T-H
- Epoxy:UL94-V0 rated flame retardant
- Case : Molded plastic, SOT-523
- Mounting Position : Any
- Weight : Approximated 0.003 gram
