BAS16T
BAS16T is Plastic-Encapsulate Diodes manufactured by UPM.

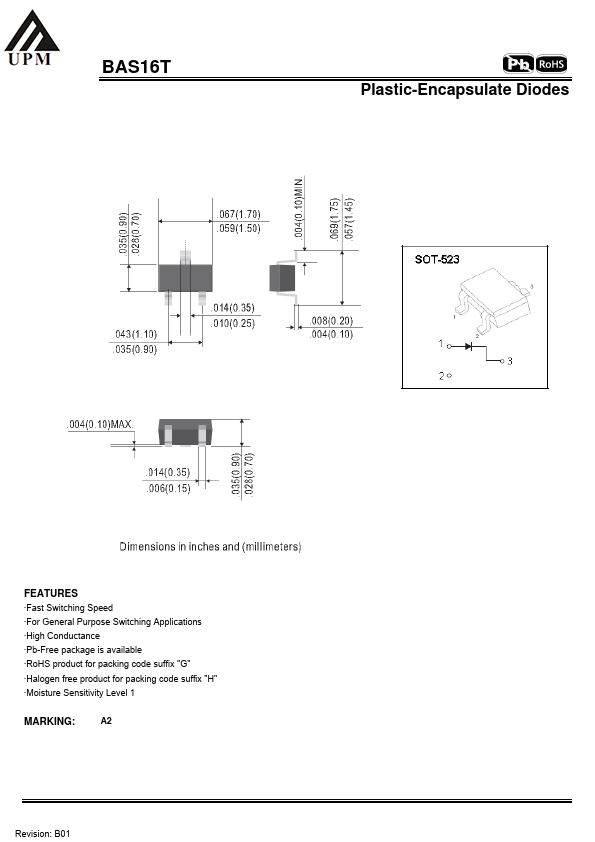

FEATURES
‧Fast Switching Speed ‧For General Purpose Switching Applications ‧High Conductance ‧Pb-Free package is available ‧Ro HS product for packing code suffix "G" ‧Halogen free product for packing code suffix "H" ‧Moisture Sensitivity Level 1
MARKING: A2
Revision: B01
Plastic-Encapsulate Diodes
Maximum Ratings (Ta=25°C unless otherwise noted)
Parameter
Non-Repetitive Peak Reverse Voltage
Peak Repetitive Peak Reverse Voltage
Working Peak Reverse Voltage
DC Reverse Voltage
RMS Reverse Voltage
Forward Continuous Current
Average Rectified Output Current
Peak Forward Surge Current
@t=1.0μs
@t=1.0s
Power Dissipation
Thermal Resistance From Junction To Ambient
Junction temperature
Operating/ Storage temperature
Symbol VRM VRRM VRWM VR
VR(RMS) IFM IO
IFSM
PD RθJA TJ TSTG
Limit 100
53 300 150
2 1 200 625 150 -55~+150
Unit V
V m A m A m A
A m W °C/W
°C °C
Electrical Characteristics (Ta=25°C unless otherwise noted)
Parameter
Symbol
Test conditions
Reverse Voltage
V(BR) IR= 1μA
VF1 IF=1m...
