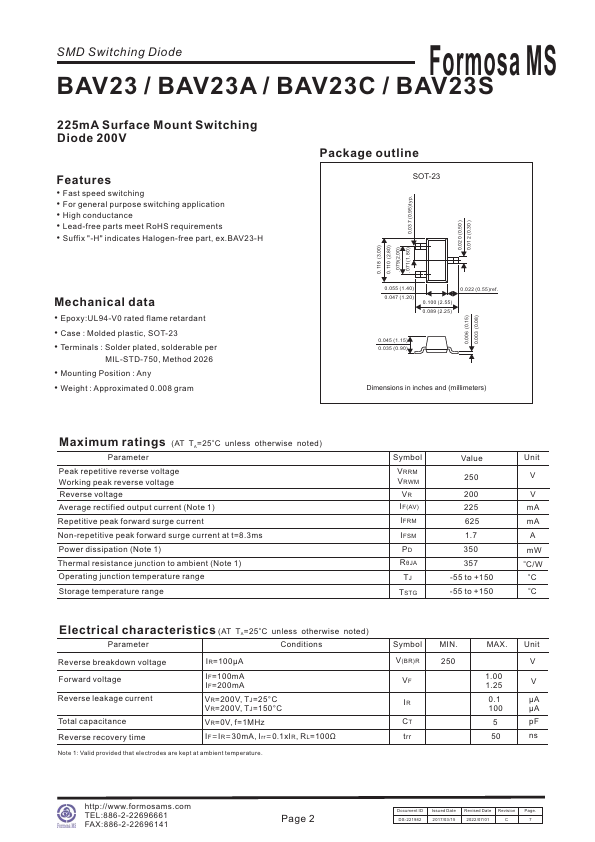

SMD Switching Diode Formosa MS BAV23 / BAV23A / BAV23C / BAV23S 225m A Surface Mount Switching Diode 200V Features - Fast speed switching - For general purpose switching application - High conductance - Lead-free parts meet Ro HS requirements - Suffix "-H" indicates Halogen-free part, ex.BAV23-H Package outline SOT-23 0.037 (0.95)typ. 0.020 (0.50) 0.012 (0.30) 0.118 (3.00) 0.110 (2.80) .079(2.00) .071(1.80) Mechanical data - Epoxy:UL94-V0 rated flame retardant - Case : Molded plastic, SOT-23 - Terminals : Solder plated, solderable per MIL-STD-750, Method 2026 - Mounting Position : Any - Weight : Approximated 0.008 gram 0.055 (1.40) 0.047 (1.20) 0.100 (2.55) 0.089 (2.25) 0.022 (0.55)ref. 0.006 (0.15) 0.003 (0.08) 0.045 (1.15) 0.035 (0.90) Dimensions in inches and (millimeters) Maximum ratings (AT TA=25o C unless otherwise noted) Parameter Peak repetitive reverse voltage Working peak reverse voltage Reverse voltage Average rectified output current (Note 1) Repetitive peak forward surge current Non-repetitive peak forward surge current at t=8.3ms Power dissipation (Note 1) Thermal resistance junction to ambient (Note 1) Operating junction temperature...
