BAV23A Datasheet | Formosa MS

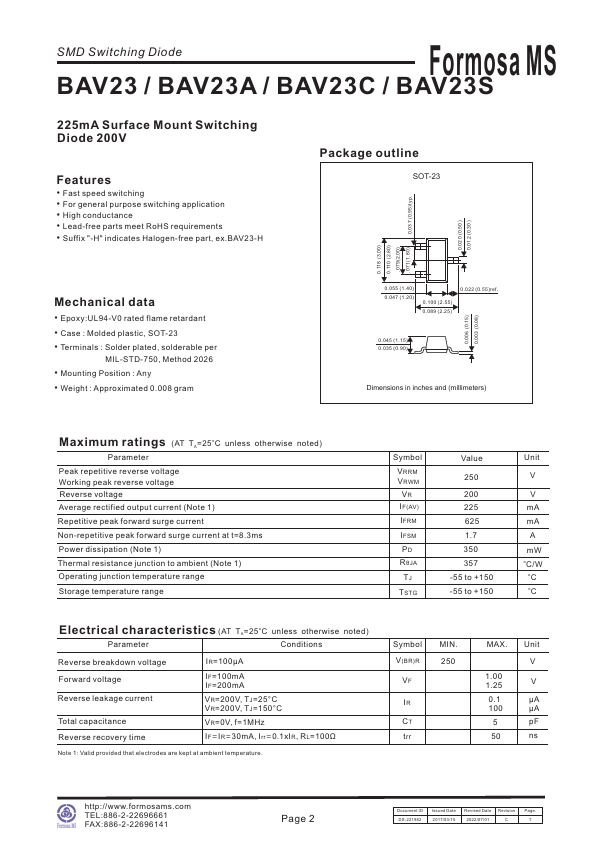

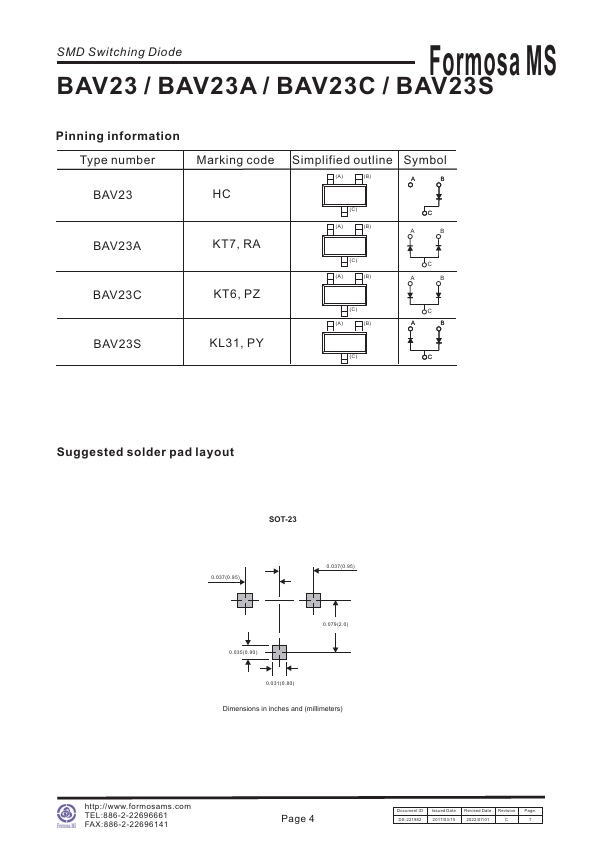

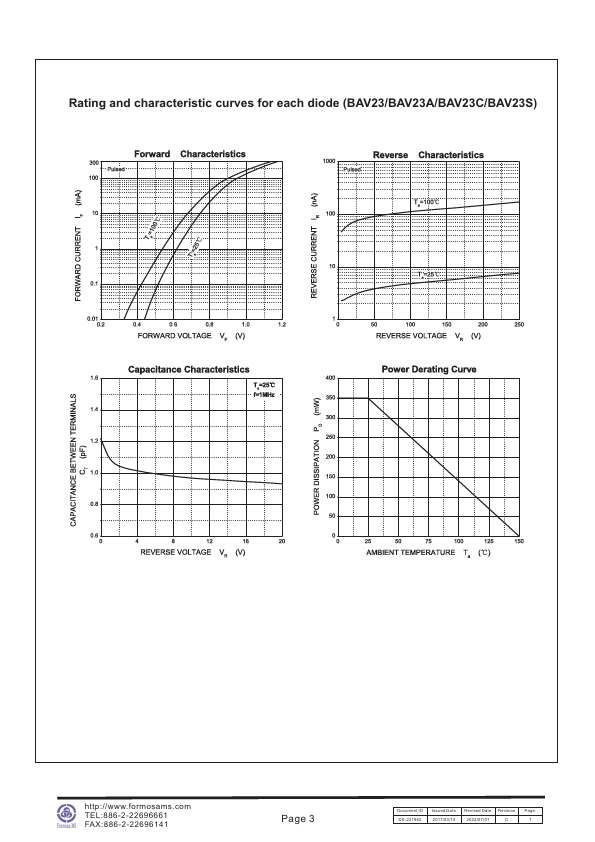

Features - Fast speed switching - For general purpose switching application - High conductance - Lead-free parts meet Ro HS requirements - Suffix "-H" indicates Halogen-free part, ex.BAV23-H Package outline SOT-23 0.037 (0.95)typ. 0.020 (0.50) 0.012 (0.30) 0.118 (3.00) 0.110 (2.80) .079(2.00) .071(1.80) Mechanical data - Epoxy:UL94-V0 rated flame retardant - Case : Molded plastic, SOT-23 - Terminals : Solder plated, solderable per MIL-STD-750, Method 2026 - Mounting Position : Any - Weight : Approximated 0.008 gram 0.055 (1.40) 0.047 (1.20) 0.100 (2.55) 0.089 (2.25) 0.022 (0.55)ref. 0.006 (0.15) 0.003 (0.08) 0.045 (1.15) 0.035 (0.90) Dimensions in inches and (millimeters) Maximum ratings (AT TA=25o C unless otherwise noted) Parameter Peak repetitive reverse voltage Working peak reverse voltage Reverse voltage Average rectified output current (Note 1) Repetitive peak forward surge current Non-repetitive peak forward surge current at t=8.3ms Power dissipation (Note 1) Thermal resistance junction to ambient (Note 1) Operating junction temperature range Storage temperature range Symbol VRRM VRWM VR IF(AV) IFRM IFSM PD RθJA TJ TSTG Value 200 225 625 1.7 350 357 -55 to +150 -55 to +150 Unit V m A m A A m W o C/W o C o C Electrical characteristics (AT TA=25o C unless otherwise noted) Parameter Conditions Reverse breakdown voltage Forward voltage Reverse leakage current Total capacitance Reverse recovery...
