Part BAV99DW
Description SMD Switching Diode Array
Category Diode
Manufacturer Formosa MS
Size 152.20 KB
BAV99DW Datasheet (PDF) Download
Pricing from 0.02631 USD, available from Avnet and Newark.
🏠
Formosa MS

BAV99DW Overview

Key Specifications

Package: SOT-363
Mount Type: Surface Mount
Pins: 6
Height: 1 mm

Key Features

  • Fast speed switching
  • For general purpose switching application
  • High conductance
  • Easily connected as full wave bridge
  • Silicon epitaxial planar chip

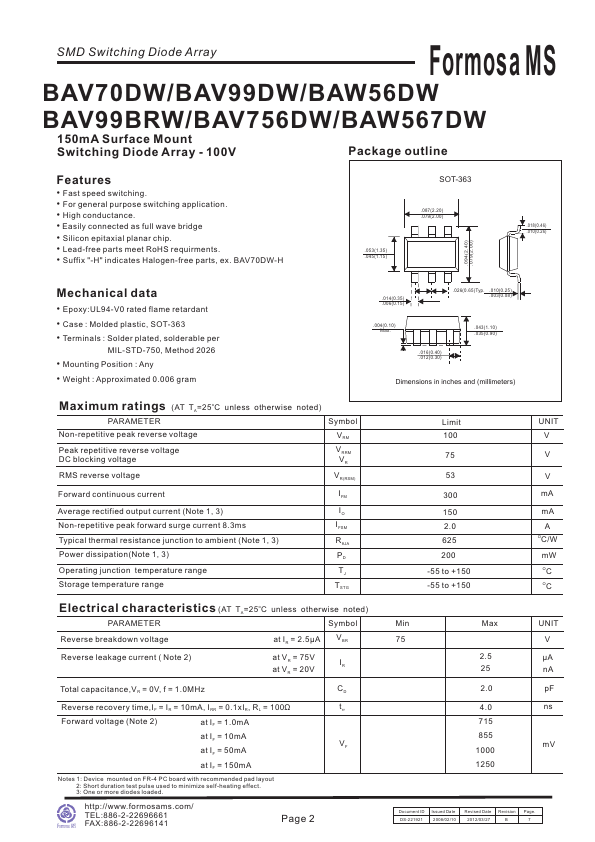

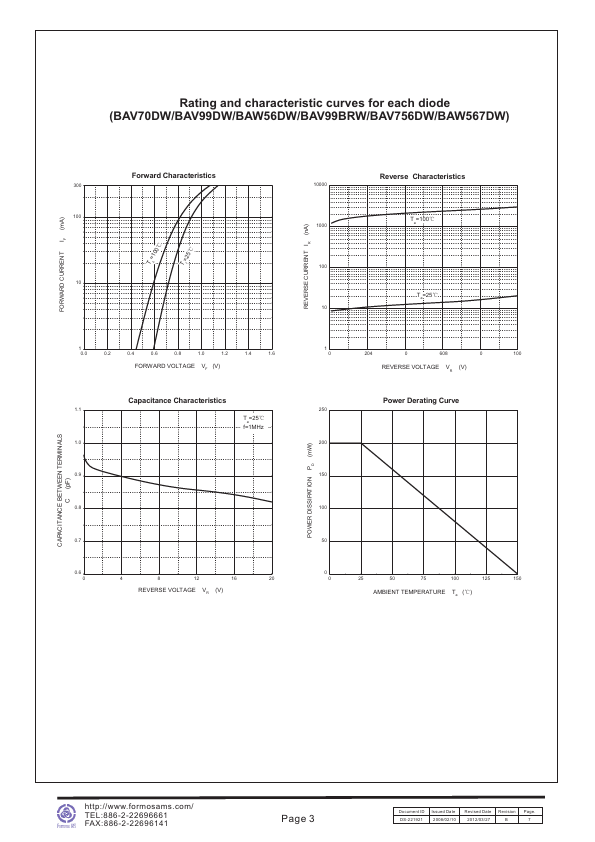

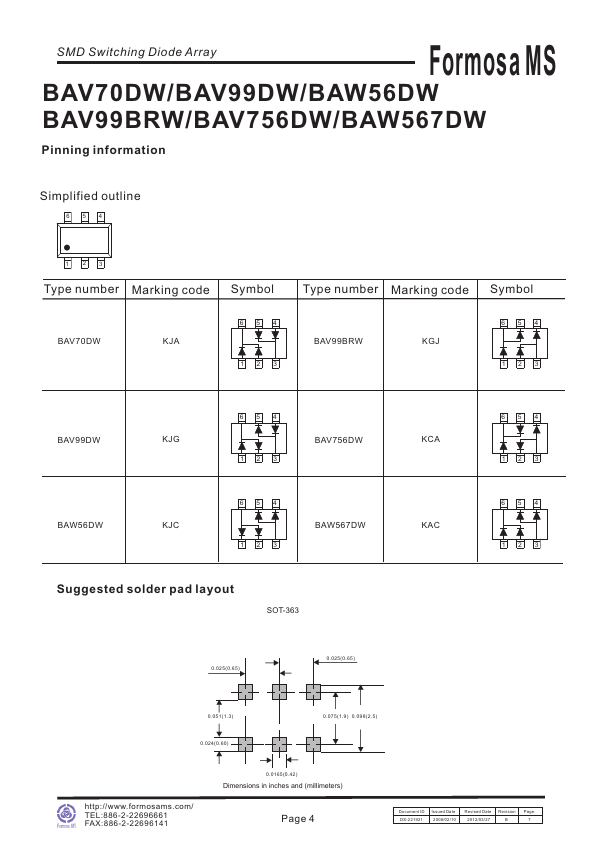

BAV99DW datasheet preview

Price & Availability

Seller Inventory Price Breaks Buy
Avnet 54000 3000+ : 0.02631 USD
6000+ : 0.02539 USD
12000+ : 0.02502 USD
24000+ : 0.02466 USD		 View Offer
Newark 118 1+ : 0.011 USD
10+ : 0.011 USD
25+ : 0.011 USD
50+ : 0.011 USD		 View Offer
