BAV99DW Datasheet | Diodes Incorporated

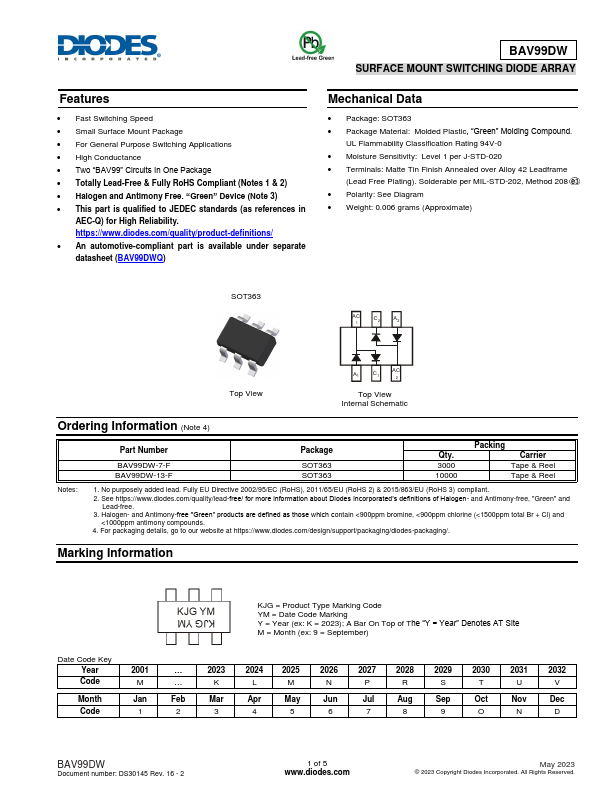

Features - Fast Switching Speed - Small Surface Mount Package - For General Purpose Switching Applications - High Conductance - Two “BAV99” Circuits In One Package - Totally Lead-Free & Fully Ro HS pliant (Notes 1 & 2) - Halogen and Antimony Free. “Green” Device (Note 3) - This part is qualified to JEDEC standards (as references in AEC-Q) for High Reliability. https://.diodes./quality/product-definitions/ - An automotive-pliant part is available under separate datasheet (BAV99DWQ) Mechanical Data - Package: SOT363 - Package Material: Molded Plastic, “Green” Molding pound. UL Flammability Classification Rating 94V-0 - Moisture Sensitivity: Level 1 per J-STD-020 - Terminals: Matte Tin Finish Annealed over Alloy 42 Leadframe (Lead Free Plating). Solderable per MIL-STD-202, Method 208 - Polarity: See Diagram - Weight: 0.006 grams (Approximate) SOT363 C2 A2 Top View A1 C1 Top View Internal Schematic Ordering Information (Note 4) Notes: Part Number BAV99DW-7-F BAV99DW-13-F Package SOT363 SOT363 Qty. 3000 10000 Packing Carrier Tape & Reel Tape & Reel 1. No purposely added lead. Fully EU Directive 2002/95/EC (Ro HS), 2011/65/EU (Ro HS 2) & 2015/863/EU (Ro HS 3) pliant. 2. See https://.diodes./quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl)...
