BAV99DW Datasheet | Semiware Semiconductor

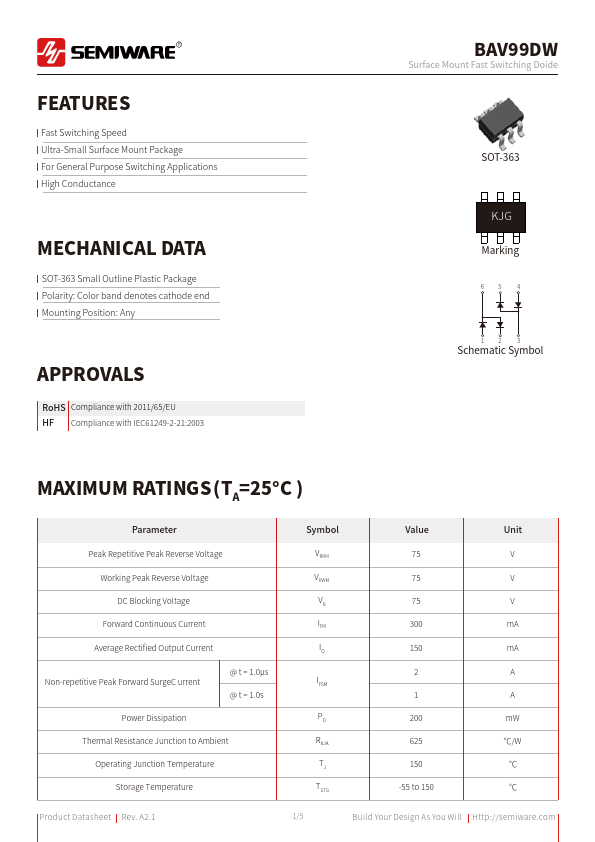

Features Fast Switching Speed Ultra-Small Surface Mount Package For General Purpose Switching Applications High Conductance MECHANICAL DATA SOT-363 Small Outline Plastic Package Polarity: Color band denotes cathode end Mounting Position: Any APPROVALS Ro HS pliance with 2011/65/EU HF pliance with IEC61249-2-21:2003 Surface Mount Fast Switching Doide SOT-363 KJG Marking 65 4 12 3 Schematic Symbol MAXIMUM RATINGS (TA=25°C ) Parameter Peak Repetitive Peak Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage Forward Continuous Current Average Rectified Output Current Non-repetitive Peak Forward Surge C urrent @ t = 1.0µs @ t = 1.0s Power Dissipation Thermal Resistance Junction to Ambient Operating Junction Temperature Storage Temperature Product Datasheet Rev. A2.1 Symbol VRRM VRWM VR IFM IO IFSM PD RθJA TJ TSTG Value 75 75 75 300 150 2 1 200 625...
