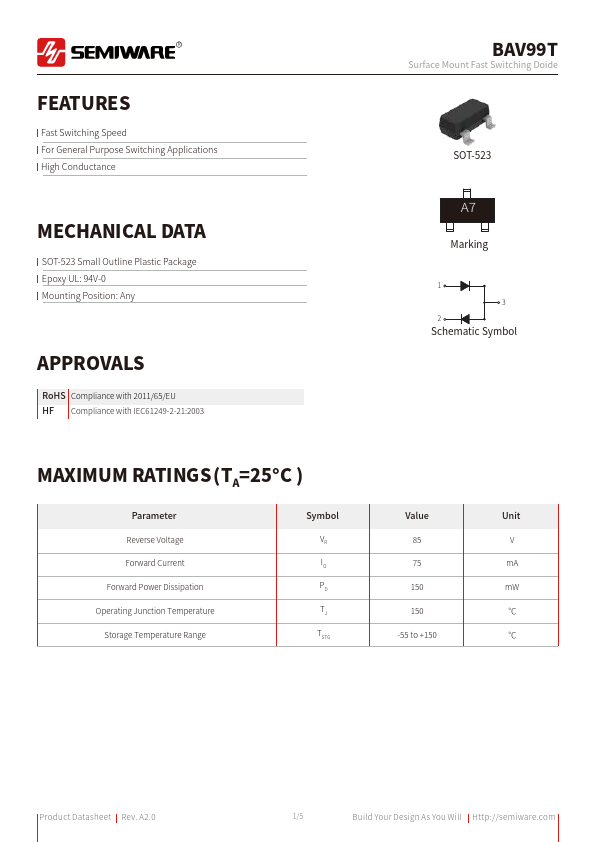

Features Fast Switching Speed For General Purpose Switching Applications High Conductance MECHANICAL DATA SOT-523 Small Outline Plastic Package Epoxy UL: 94V-0 Mounting Position: Any APPROVALS Ro HS pliance with 2011/65/EU HF pliance with IEC61249-2-21:2003 MAXIMUM RATINGS (TA=25°C ) Parameter Reverse Voltage Forward Current Forward Power Dissipation Operating Junction Temperature Storage Temperature Range Symbol VR IO PD TJ TSTG Surface Mount Fast Switching Doide SOT-523 A7 Marking 1 3 Schematic Symbol Value 85 75 150 150 -55 to +150 Unit V m A m W ℃ ℃ Product Datasheet Rev. A2.0 1/5 Build Your Design As You Will Http://semiware. Surface Mount Fast Switching Doide ELECTRICAL CHARACTERISTICS(TA=25°C ) Parameter Symbol Forward Voltage Reverse Breakdown Voltage V(BR) IR1 Reverse Voltage Leakage...
