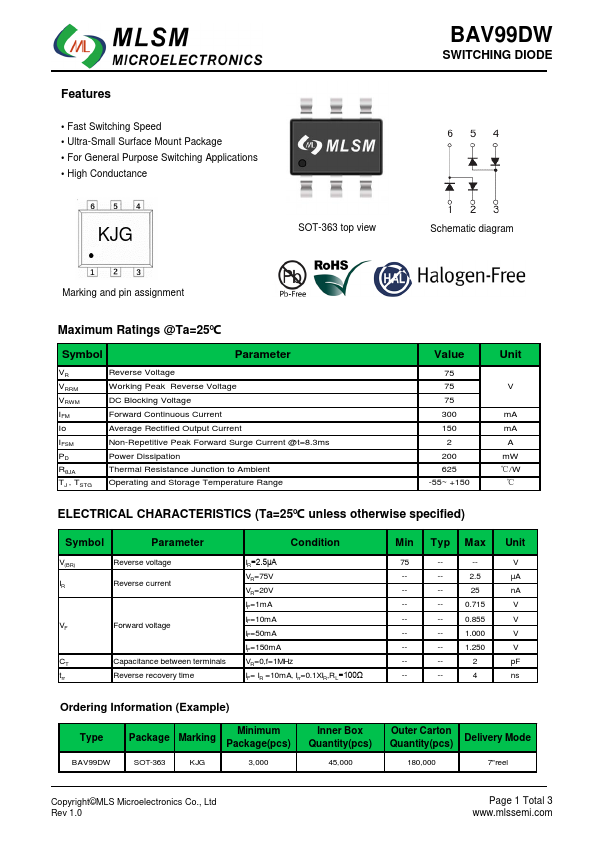

Features - Fast Switching Speed - Ultra-Small Surface Mount Package - For General Purpose Switching Applications - High Conductance SOT-363 top view SWITCHING DIODE Schematic diagram Marking and pin assignment Maximum Ratings @Ta=25℃ Symbol Parameter VR VRRM VRWM IFM Io IFSM PD RθJA TJ , TSTG Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage Forward Continuous Current Average Rectified Output Current Non-Repetitive Peak Forward Surge Current @t=8.3ms Power Dissipation Thermal Resistance Junction to Ambient Operating and Storage Temperature Range Value 75 75 75 300 150 2 200 625 -55~ +150 Unit V m A m A A m W ℃/W ℃ ELECTRICAL CHARACTERISTICS (Ta=25℃ unless otherwise specified) Symbol Parameter V(BR) Reverse voltage Reverse current Forward voltage Capacitance between terminals trr Reverse recovery time Condition IR=2.5μA VR=75V VR=20V IF=1m A IF=10m A IF=50m A IF=150m A VR=0,f=1MHz IF= IR =10m A, Irr=0.1XIR,RL=100Ω Min...
