BAW56DW
BAW56DW is SMD Switching Diode Array manufactured by Formosa MS.
SMD Switching Diode Array
Formosa MS

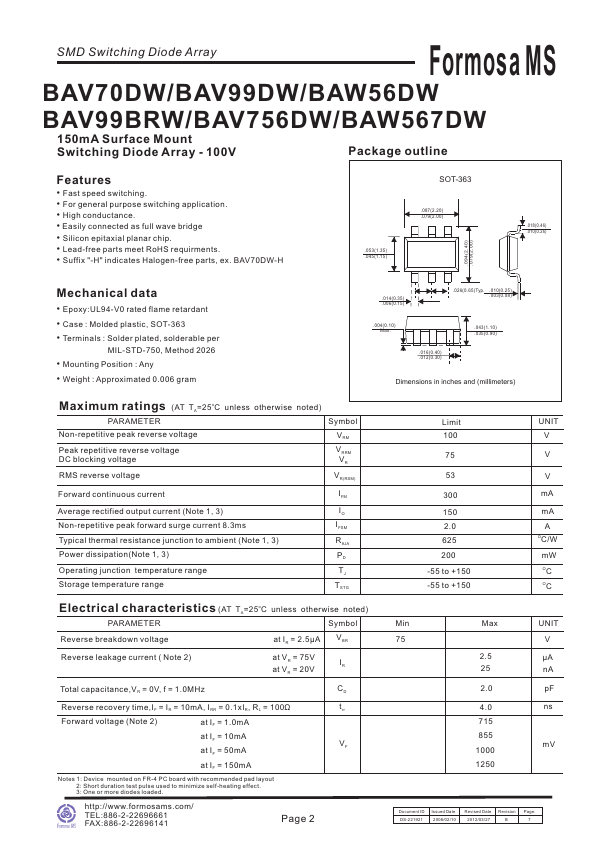

BAV70DW/BAV99DW/BAW56DW
BAV99BRW/BAV756DW/BAW567DW
150m A Surface Mount Switching Diode Array
- 100V
Package outline
Features
- Fast speed switching.
- For general purpose switching application.
- High conductance.
- Easily connected as full wave bridge
- Silicon epitaxial planar chip.
- Lead-free parts meet Ro HS requirments.
- Suffix "-H" indicates Halogen-free parts, ex. BAV70DW-H
.053(1.35) .045(1.15)
SOT-363
.087(2.20) .079(2.00)
.018(0.46) .010(0.26)
.094(2.40) .079(2.00)
Mechanical data
- Epoxy:UL94-V0 rated flame retardant
- Case : Molded plastic, SOT-363
- Terminals : Solder plated, solderable per
MIL-STD-750, Method 2026
- Mounting Position : Any
- Weight : Approximated 0.006 gram
.014(0.35) .006(0.15)
.026(0.65)Typ. .010(0.25) .003(0.08)
.004(0.10)...
