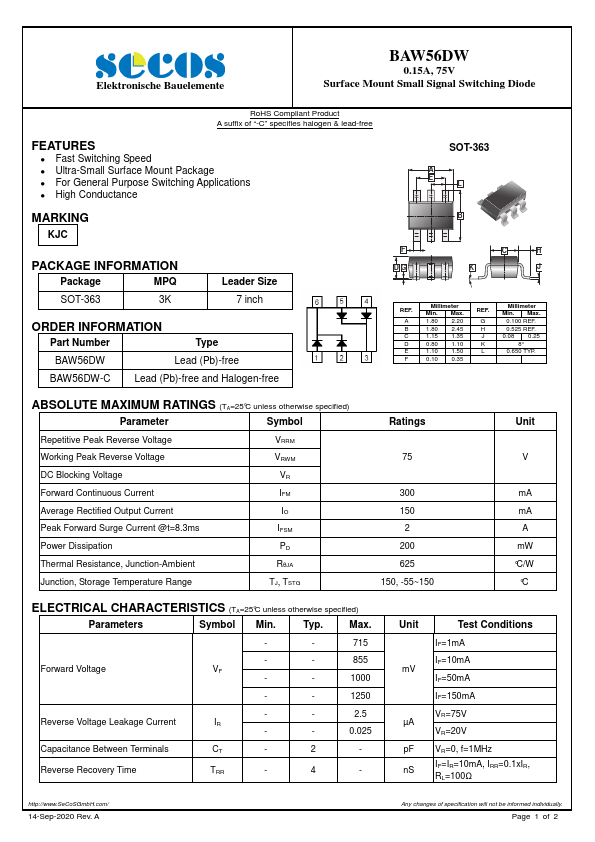

BAW56DW Datasheet | SeCoS Halbleitertechnologie GmbH

Elektronische Bauelemente 0.15A, 75V Surface Mount Small Signal Switching Diode Ro HS pliant Product A suffix of “-C” specifies halogen & lead-free Features Fast Switching Speed Ultra-Small Surface Mount Package For General Purpose Switching Applications High Conductance MARKING PACKAGE INFORMATION Package SOT-363 3K Leader Size 7 inch ORDER INFORMATION Part Number Type Lead (Pb)-free BAW56DW-C Lead (Pb)-free and Halogen-free SOT-363 REF. A B C D E F Millimeter Min. Max. 1.80 2.20 1.80 2.45 1.15 1.35 0.80 1.10 1.10 1.50 0.10 0.35 REF. G H J K L Millimeter Min. Max. 0.100 REF. 0.525 REF. 0.08 0.25 8° 0.650...
