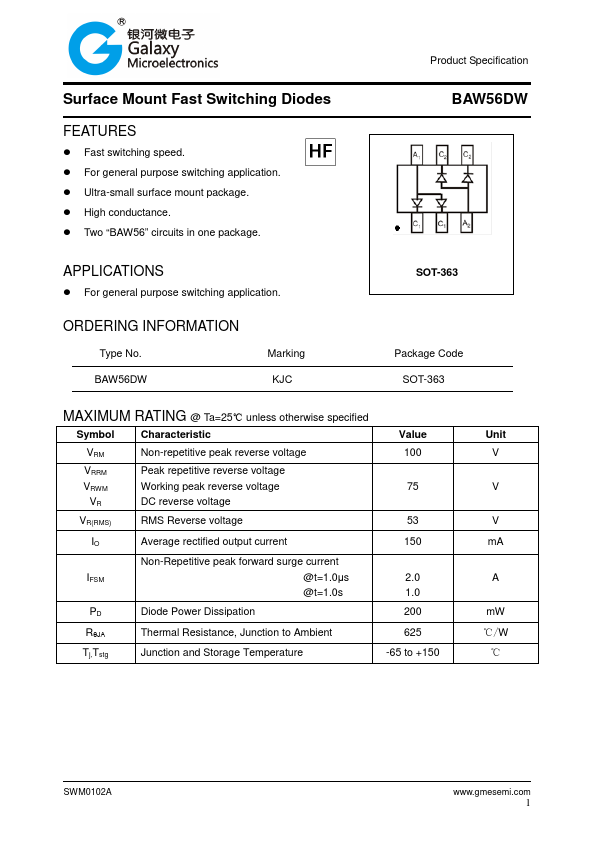

Product Specification Surface Mount Fast Switching Diodes Features - Fast switching speed. - For general purpose switching application. - Ultra-small surface mount package. - High conductance. - Two “BAW56” circuits in one package. APPLICATIONS - For general purpose switching application. ORDERING INFORMATION Type No. BAW56DW Marking KJC SOT-363 Package Code SOT-363 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Characteristic Non-repetitive peak reverse voltage VRRM VRWM Peak repetitive reverse voltage Working peak reverse voltage DC reverse voltage VR(RMS) RMS Reverse voltage Average rectified output current Non-Repetitive peak forward surge current IFSM @t=1.0μs @t=1.0s Diode Power Dissipation RθJA Thermal Resistance, Junction to...
