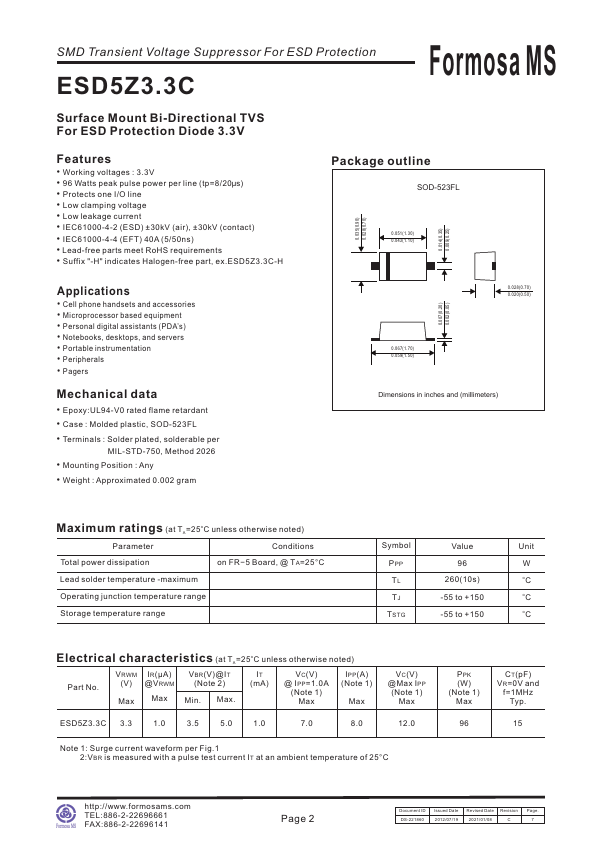

ESD5Z3.3C
Features
- Working voltages : 3.3V
- 96 Watts peak pulse power per line (tp=8/20μs)
- Protects one I/O line
- Low clamping voltage
- Low leakage current
- IEC61000-4-2 (ESD) ±30k V (air), ±30k V (contact)
- IEC61000-4-4 (EFT) 40A (5/50ns)
- Lead-free parts meet Ro HS requirements
- Suffix "-H" indicates Halogen-free part, ex.ESD5Z3.3C-H
0.035(0.90) 0.028(0.70)
Package outline
SOD-523FL
0.051(1.30) 0.043(1.10)
0.014(0.35) 0.009(0.25)
Applications
- Cell phone handsets and accessories
- Microprocessor based equipment
- Personal digital assistants (PDA’s)
- Notebooks, desktops, and servers
- Portable instrumentation
- Peripherals
- Pagers
Mechanical data
- Epoxy:UL94-V0 rated flame retardant
- Case : Molded plastic, SOD-523FL
- Terminals : Solder plated, solderable per
MIL-STD-750, Method 2026
- Mounting Position : Any
- Weight : Approximated 0.002 gram
0.007(0.20) 0.002(0.05)
0.028(0.70) 0.020(0.50)
0.067(1.70) 0.059(1.50)
Dimensions in inches and (millimeters)
Maximum ratings (at...
