SD103AW Overview

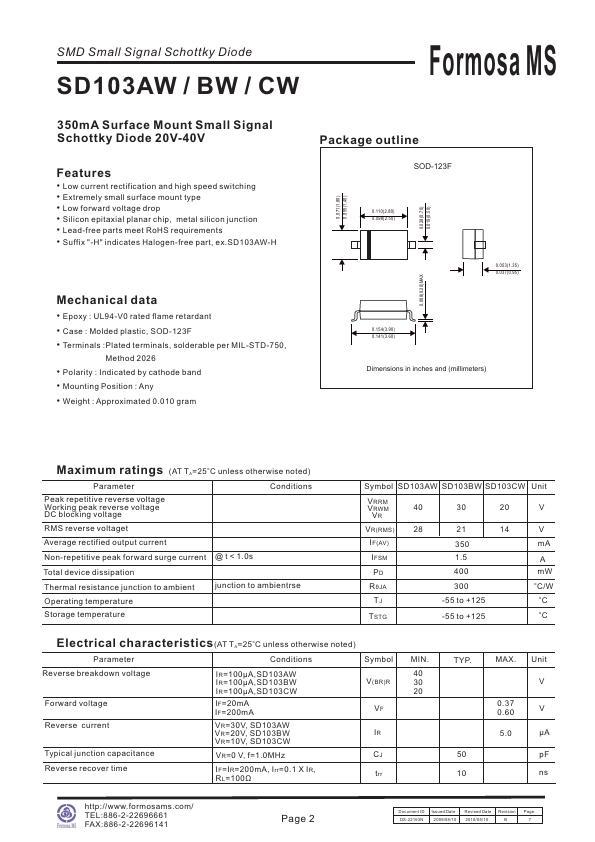

SMD Small Signal Schottky Diode SD103AW / BW / CW Formosa MS 350mA Surface Mount Small Signal Schottky Diode 20V-40V.
SD103AW Key Features
- Low current rectification and high speed switching
- Extremely small surface mount type
- Low forward voltage drop
- Silicon epitaxial planar chip, metal silicon junction
- Lead-free parts meet RoHS requirements
- Suffix "-H" indicates Halogen-free part, ex.SD103AW-H
- Epoxy : UL94-V0 rated flame retardant
- Case : Molded plastic, SOD-123F
- Terminals :Plated terminals, solderable per MIL-STD-750
- Polarity : Indicated by cathode band
