SD103CW Datasheet

Manufacturer: Formosa MS

This datasheet includes multiple variants, all published together in a single manufacturer document.

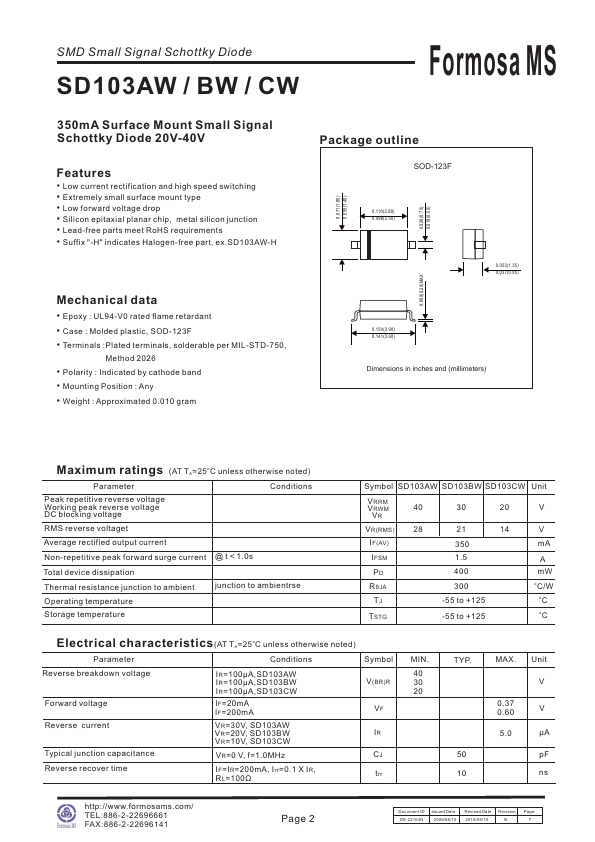

SD103CW datasheet preview

Datasheet Details

Part number SD103CW
Datasheet SD103CW SD103AW Datasheet (PDF)
File Size 57.42 KB
Manufacturer Formosa MS
Description SMD Small Signal Schottky Diode

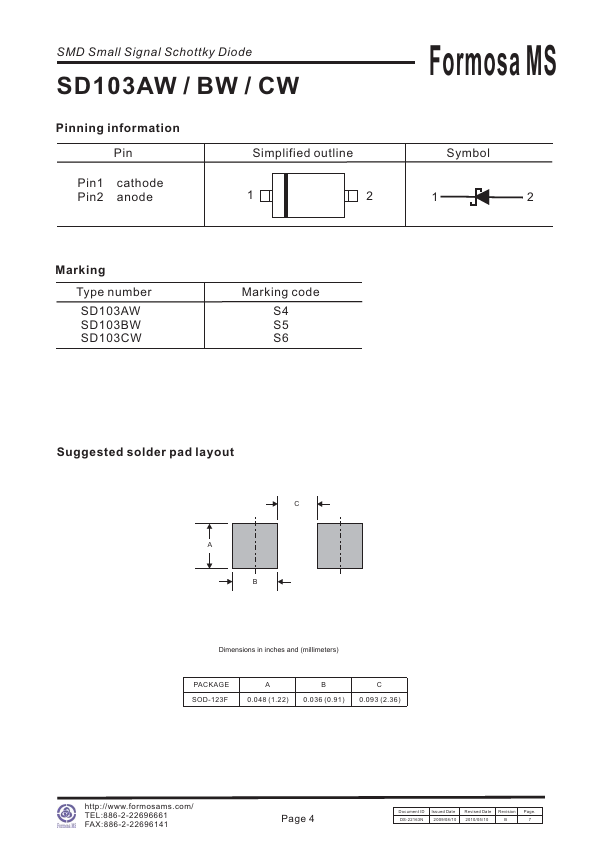

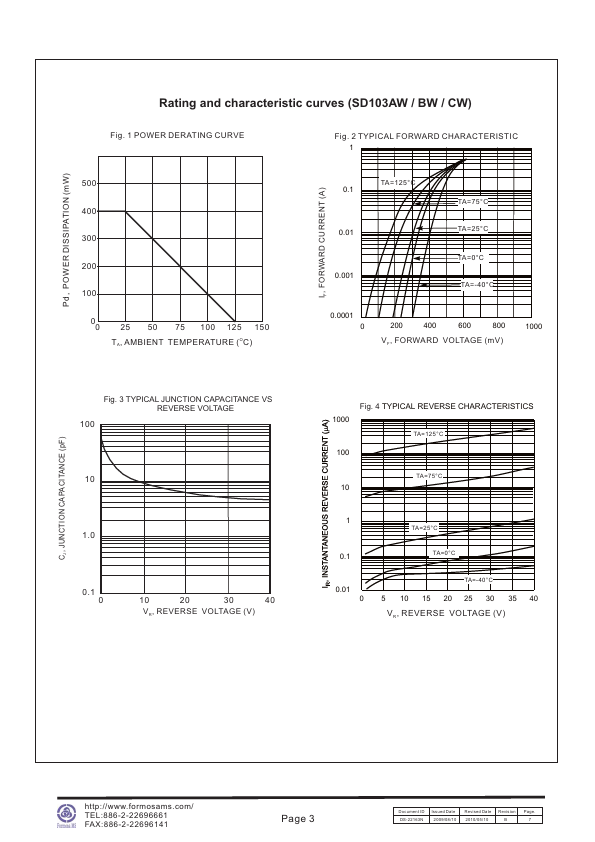

SD103CW page 2 SD103CW page 3

SD103CW Overview

SMD Small Signal Schottky Diode SD103AW / BW / CW Formosa MS 350mA Surface Mount Small Signal Schottky Diode 20V-40V.

SD103CW Key Features

  • Low current rectification and high speed switching
  • Extremely small surface mount type
  • Low forward voltage drop
  • Silicon epitaxial planar chip, metal silicon junction
  • Lead-free parts meet RoHS requirements
  • Suffix "-H" indicates Halogen-free part, ex.SD103AW-H
  • Epoxy : UL94-V0 rated flame retardant
  • Case : Molded plastic, SOD-123F
  • Terminals :Plated terminals, solderable per MIL-STD-750
  • Polarity : Indicated by cathode band
