SD103AX Datasheet | Semiware Semiconductor

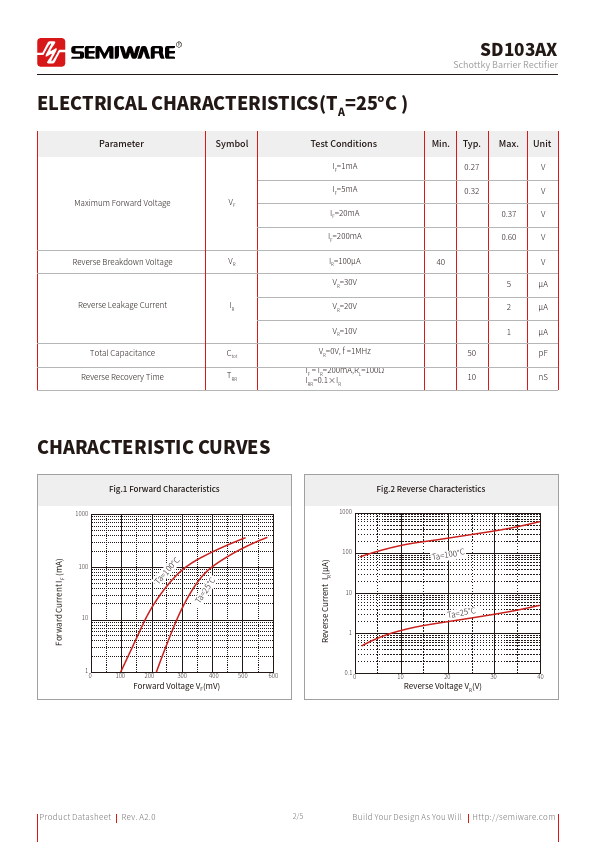

FEATURES High Current Capability Low Forward Voltage Drop MECHANICAL DATA SOD-523 Small Outline Plastic Package Polarity: Color band denotes cathode end Mounting Position: Any APPROVALS Ro HS pliance with 2011/65/EU HF pliance with IEC61249-2-21:2003 MAXIMUM RATINGS (TA=25°C ) Parameter Peak Repetitive Reverse Voltage RMS Reverse Voltage Maximum DC Blocking Voltage Maximum Average Forward Rectified Current Peak Forward Surge Current 8.3ms Single Half Sine-wave Power Dissipation Typical Thermal Resistance Operating Junction Temperature Storage Temperature Range Symbol VRRM VR(RMS) VDC IFM IFSM PD RθJA TJ TSTG Schottky Barrier Rectifier SOD-523 S4 Marking Schematic Symbol Value 40 28 40 350 2 150 667 125 -50-+150 Unit V V V m A A m W ℃/W ℃ ℃ Product Datasheet Rev. A2.0 1/5 Build Your Design As You Will Http://semiware. Schottky Barrier Rectifier ELECTRICAL CHARACTERISTICS(TA=25°C ) Parameter Symbol Maximum Forward Voltage Reverse Breakdown Voltage Reverse Leakage Current Total Capacitance Ctot Reverse Recovery Time Test Conditions IF=1m A IF=5m A IF=20m A IF=200m A IR=100μA VR=30V VR=20V VR=10V VR=0V, f =1MHz IF = IR=200m A,RL=100Ω IRR=0.1×IR Min. Typ. Max....
